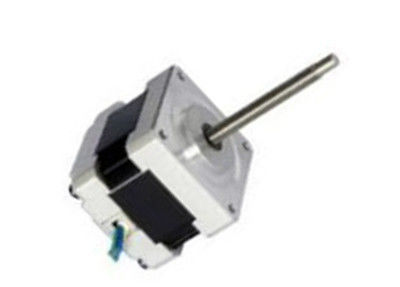

39mm Nema 08 / Nema 16 Hybrid Linear Stepper

39mm Nema 08 / Nema 16 Hybrid Linear Stepper

  • 39mm Nema 08 / Nema 16 Hybrid Linear Stepper
39mm Nema 08 / Nema 16 Hybrid Linear Stepper
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-6204
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
High Light:

Smart Automatic Door

,

automatic door operator

39mm Nema 08 / Nema 16 Hybrid Stepper Motor



Quick Detail:



Nema 16, 39mm hybrid linear stepper motor





Description:



  • Type: Hybrid
  • Certification: CCC,CE,ROHS
  • Step Angle(degrees): 0.01
  • Holding Torque: 0.21N.m
  • Current / Phase: 0.4A
  • linear stepper motor: linear stepper motor





Specifications:



Step Accuracy…………………………… ±5%
Temperature Rise…………………………80°C Max
Ambient Temperature Range……………-20°C~+50°C
Insulation Resistance……………………100MΩMin.500VC DC
Dielectric Strength………………………500V AC 1SS





Model

Step angle
(º)

Motor Length
L(mm)

Rated voltage
(V)

Rated Current
(A)

Phase Resistance
(Ω)

Phase Inductance
(mH)

Holding Torque
(N.m)

Lead Wire
(NO.)

Rotor Inertia
(kg.cm²)

Detent Torque
(Kg.cm)

Motor weight
(kg)

6204

0.01

34

12

0.4

30

42

0.21

4

0.02

0.12

0.18

39mm Nema 08 / Nema 16 Hybrid Linear Stepper  0



39mm Nema 08 / Nema 16 Hybrid Linear Stepper  1





Applications:



This series of DC electric linear actuator is widely used in electric nursing bed, operation table, traction table, massage chairs, dental chair, electric wheelchair, electric sofa, electric booth, electric sunroof, ergonomic furniture for linear motion actuator occasions, the installation is very convenient, is widely applied in many fields of medical, fire, home furnishing, mechanical and electrical, chemical industry, sanitary ware, leisure etc..





Competitive Advantage:



linear stepper motor
1.nema08 nema11,nema14,nema16,nema17,nema23
2.High accuracy
3.Customized degisn
4.Smooth movement
