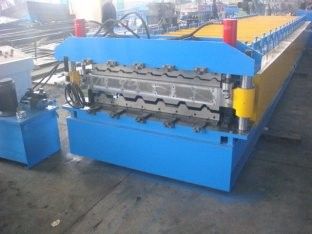

60Hz 3 Phase Double Layer Roll Forming Machine for Roof Panels

Product Details:

Place of Origin:	China
Brand Name:	DB
Certification:	CE & SGS
Model Number:	According to profile

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD20000-35000/set
Packaging Details:	1. nude package and fixed by steel rope. 2. A full set of 40GP container.
Delivery Time:	35days
Payment Terms:	TT/LC
Supply Ability:	5sets/month

Contact Now

Detailed Product Description

Control System:	PLC	Name:	Double Layer Roll Forming Machine
Raw Material:	Galvanized Sheet	Cutting Blade Material:	Cr 12 Mov
Power(w):	5.5KW	Usage:	Roof
Highlight:	sheet metal roll forming machines , portable roll forming machines

380V60Hz 3 Phase Double Layer Roll Forming Machine for Roof Panels

Application:

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Advantage:

available for two profiles roof panel shared one frame, save the cost.

1. First in quality

2. First in time

3. First in price

4. First in services

Technical Parameters:

Material Spec:	Colored Steel Sheet; Galvanized Steel Sheet
Thickness of Coil Sheet:	0.3-0.8mm
Motor Power:	5.5KW
Forming Speed:	15-18M/MIN
Hydraulic Station Power:	5.5 KW
Quantity of Stands:	17 Stands
Index Error of Length:	10M ± 2mm
Hydraulic Pressure:	10-12Mpa
Controlling System:	PLC
Total Weight:	About 80000KGS
Voltage:	380V 3 Phase 60Hz or At Buyers Requirement

Consists:

This roll forming machine can separately produce corrugated roof and IBR roof in one line.

Automatically cut to length, PLC control, alternating Current Frequency Conversion.

This line consists of

a) 5 Ton Mechanical uncoiler

b) guiding and feeding device

c) roll former

d) run out table

e) PLC controller

f) hydraulic post-cutting equipment

g) electrical control system, hydraulic system, etc.
