Pedestrian Retractable Turnstile Security Systems Sliding Door

small.img.alt small.img.alt

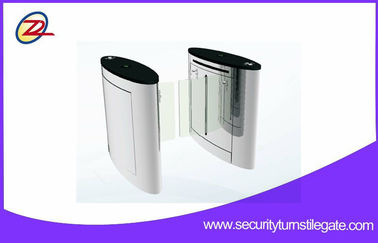

Large Image :  Pedestrian Retractable Turnstile Security Systems Sliding Door

Product Details:

Place of Origin: china
Brand Name: TDZ
Certification: CE
Model Number: TDZ - P624

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 600 - 1250 / Piece
Packaging Details: paper carton/wooden case
Delivery Time: 5-7 working days after ordered
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 pieces / month
Detailed Product Description
Size: 1400 * 320 * 1000 Mm Thick Of Steel: 1.5mm
Material: 304 Stainless Steel Place Of Origin: China
Production: All CNC Laser Cutting Working Temperature: -15°C ~ 50°C
High Light:

Electronic Turnstile


Turnstile Security Systems

Pedestrian Retractable Turnstile Security Systems Sliding Door

Tehcnical Parameters:

Stainless Steel Specification                             Body: SS304
Channel Widthno more than 600mm
Power SupplyAC110V±10V,60Hz / AC220V±10V,50Hz

Drive motor

Brushless DC motor 24V

Communication interface

RS485 electrical standard or TCP/IP

Passing Speed

40 persons/min (normal open)

30 persons/min (normal close)

Response Time1s
    Input Interface+12V electrical signal or DC impulse signal with width >100ms
Communication InterfaceRS485/relay signal
Operating Temperature-15°C ~ 50°C
Related Humility<=95%
Package Paper Carton/Wooden Box

Functions and features:
1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access Prompt function:Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can choose,
you can set a one-way or two-way control
4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
5. Power failure emergency function after power channel automatically open, closed automatically
after power-on, to meet the special needs of the user and the fire safety requirements
6. The control panel with counting function, LED digital display function (optional)
7. The standard input and output interface, is the best choice for system integrators
8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,
swing gates automatic cancellation of this authority back to the initial state.(the standard is gate
 turns on 5 seconds will be automatically reset)
9. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a
predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is
 very small(2kg)
10. Sound, light alarm function: with trespassing, trailing alarm
11. Scour protection function ,when the gate signal is not received, the stick is automatically locked
12.  Fault detection and alarm function, user-friendly maintenance and use
