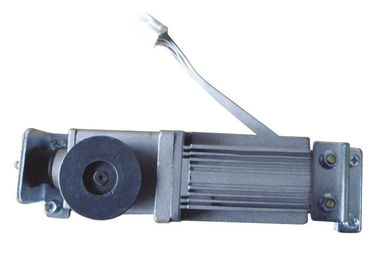

DC Gear Motor for the automatic door system with different color coating ,24VDC 65W 4200RPM

DC Gear Motor for the automatic door system with different color coating ,24VDC 65W 4200RPM

  • DC Gear Motor for the automatic door system with different color coating ,24VDC 65W 4200RPM
DC Gear Motor for the automatic door system with different color coating ,24VDC 65W 4200RPM
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4009-E2
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet, Net weight 1.5kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Speed: 24v Construction: Permanent Magnet
Dia: 45mm Torque: 6-50Kg.cm
Type: Micro Motor
High Light:

planetary geared motor

,

small gear motors



Quick Detail:

DC Gear Motor for the automatic door system with different color coating ,24VDC 65W 4200RPM


Description:


1.10 years experience
2.ISO900, CE Certificated
2.Great flexibility & OEM capacity
4.Silent working
5.Comtetitive Price


Permanent Magnet Brushed DC motor, worm gear box
Gear material: Aluminum Diecasting Gearbox
Motor housing: D63.5mm, Black coating or Zincification available
Rolled Steel Housing Construction
Various Output Shaft design
Metal or Plastic pulley available
Permanent magnet motor
Worm gearbox
Permanent lubrication by grease
Working temperature range -25C to + 60C
Encoder controlled





Quick Detail:

Blushless DC Motor for the automatic door system with different color coating ,24VDC 65W 4200RPM


Description:


1.10 years experience
2.ISO900, CE Certificated
2.Great flexibility & OEM capacity
4.Silent working
5.Comtetitive Price


Permanent Magnet Brushed DC motor, worm gear box
Gear material: Aluminum Diecasting Gearbox
Motor housing: D63.5mm, Black coating or Zincification available
Rolled Steel Housing Construction
Various Output Shaft design
Metal or Plastic pulley available
Permanent magnet motor
Worm gearbox
Permanent lubrication by grease
Working temperature range -25C to + 60C
Encoder controlled



Specifications:











Code

Voltage

Power

torque

Speed

Protection

class

Weight

Encoder

Life time

V

W

Nm

Rpm

IP

KG

4004

24V

65

16

4200

IP44

3.0

Yes

3million cycles,10year





Code

Voltage

Power

torque

Speed

Protection

class

Weight

Ratio

Life time

V

W

Nm

Rpm

IP

KG

4008

24V

65

15-20

4200

IP44

3.0

1:15

3million cycles,10year




Applications:

Permanent Magnet Brushed DC 24VDC, 50W DC motor, and is encoder controller. It offers strong permissible torque and instantaneous reversing characteristics with low noise, long life and reliable performance. It features permanent magnet motor utilizing neodymium iron boron alloy, which is permanently mounted on the stator. As a result, the motor dispels its heat more evenly, preventing overhearing and increasing efficiency.
The motor also features a small commuter, resulting in lower wear on the motor’s brushes. As a result, the brushes on the motor, if used for automatic doors, can last for over 10 years, without need for replacement.

The motor also can used a hardened alloy steel worm with phosphor bronze gear, which provides much larger torque than traditional plastic gears.
