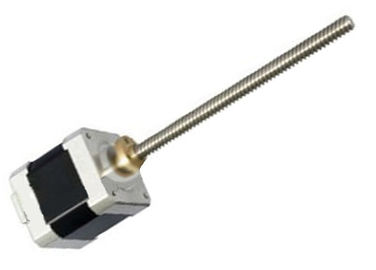

Nema 16 / Nema 17 Hybrid Stepper Motor

Nema 16 / Nema 17 Hybrid Stepper Motor

Nema 16 / Nema 17 Hybrid Stepper Motor

Product Details:

Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-6205

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description

Nema 16 / Nema 17 Hybrid Stepper Motor



Quick Detail:



Nema 17 lead screw stepper motor





Description:



  • Type: Hybrid
  • Certification: CCC,CE,ROHS
  • Step Angle(degrees): 1.8 Degree
  • Holding Torque: Customized
  • Current / Phase: Customized
  • linear stepper motor: linear stepper motor





Specifications:



  • Voltage: 12V
  • Step Angle(degrees): 0.01
  •  Holding Torque: 0.21N.m
  • Current / Phase: 0.4A
  • Step Angle Accuracy:±5%(full step,no load)
  •  Resistance Accuracy:±10%
  • Inductance Accuracy:±20%
  • Temperature Rise:80°CMax.(rated current,2 phase on)
  • Ambient Temperature: -20°C-+50°C
  • Insulation Resistance: 100MΩMin.500VDC
  • Dielectric Strength:500VAC 1S
  • Shaft Radial Play;0.06Max.(450 g-load)
  • Shaft Axial Play; 0.08Max.(450 g-load)
  • Certificate:CE/CCC/ROSH
  • Protection class: IP 54



Nema 16 / Nema 17 Hybrid Stepper Motor



Nema 16 / Nema 17 Hybrid Stepper Motor





Applications:



This series of DC electric linear actuator is widely used in electric nursing bed, operation table, traction table, massage chairs, dental chair, electric wheelchair, electric sofa, electric booth, electric sunroof, ergonomic furniture for linear motion actuator occasions, the installation is very convenient, is widely applied in many fields of medical, fire, home furnishing, mechanical and electrical, chemical industry, sanitary ware, leisure etc..





Competitive Advantage:



linear stepper motor
1.nema08 nema11,nema14,nema16,nema17,nema23
2.High accuracy
3.Customized degisn
4.Smooth movement
