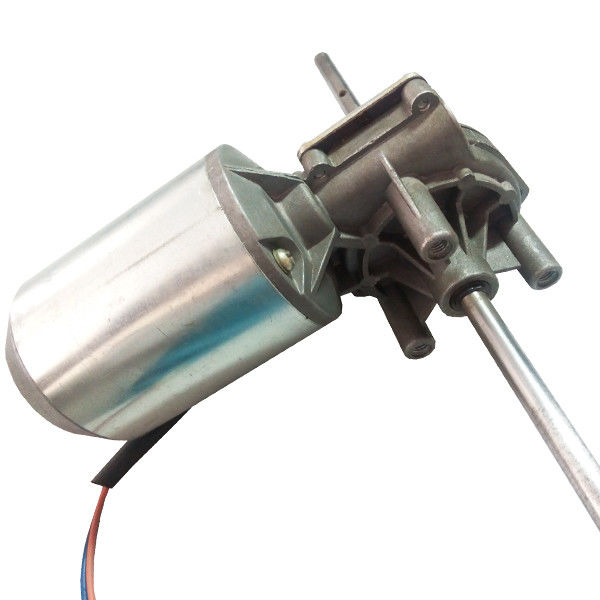

Massage Chair Motor Door Opener Motor For 12VDC / 50W Shaft Galvanized Casing

Massage Chair Motor Door Opener Motor For 12VDC / 50W Shaft Galvanized Casing

  • Massage Chair Motor Door Opener Motor For 12VDC / 50W Shaft Galvanized Casing
Massage Chair Motor Door Opener Motor For 12VDC / 50W Shaft Galvanized Casing
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-1056-F1
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
High Light:

Smart Automatic Door

,

automatic door operator



Massage Chair Motor Door Opener Motor For 12VDC / 50W  Shaft Galvanized Casing





Description:



1.10 years experience
2.ISO900, CE Certificated
2.Great flexibility & OEM capacity
4.Silent working
5.Comtetitive Price



Permanent Magnet Brushed DC motor, worm gear box

Gear material: Aluminum Diecasting Gearbox

Motor housing: D63.5mm, Black coating or Zincification available

Rolled Steel Housing Construction

Various Output Shaft design

Metal or Plastic pulley available

Permanent magnet motor

Worm gearbox

Permanent lubrication by grease

Working temperature range -25C to + 60C

Encoder controlled



Specifications:





Code

Voltage

Power

No load

On load

Stall torque

Protection class

Weight

Encoder Honeywell

Speed

Current

Speed

Current

V

W

RPM

A

RPM

A

Nm

IP

KG

02100

12V

50

30

0.7

25

4

18

IP44

2

Yes





Applications:



Permanent Magnet Brushed DC 24VDC, 50W DC motor, and is encoder controller. It offers strong permissible torque and instantaneous reversing characteristics with low noise, long life and reliable performance. It features permanent magnet motor utilizing neodymium iron boron alloy, which is permanently mounted on the stator. As a result, the motor dispels its heat more evenly, preventing overhearing and increasing efficiency.

The motor also features a small commuter, resulting in lower wear on the motor’s brushes. As a result, the brushes on the motor, if used for automatic doors, can last for over 10 years, without need for replacement.

The motor also can used a hardened alloy steel worm with phosphor bronze gear, which provides much larger torque than traditional plastic gears.
