Motorize Bogie Moving Pipe Welding Rotator With Cycloidal Planetary Gear Reducer

Motorize Bogie Moving Pipe Welding Rotator With Cycloidal Planetary Gear Reducer

  • Motorize Bogie Moving Pipe Welding Rotator With Cycloidal Planetary Gear Reducer
  • Motorize Bogie Moving Pipe Welding Rotator With Cycloidal Planetary Gear Reducer
Motorize Bogie Moving Pipe Welding Rotator With Cycloidal Planetary Gear Reducer
Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: HGK20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Contact for detail
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 45set/month
Contact Now
Detailed Product Description
Application: Pipe Tank Boiler Fabrication Function: Hold And Rotate Job
Usage: Seam Welding Speed Control: Variable Frequency Drive
Feature: Motorized Trolley Voltage: As Per Required
High Light:

pipe rollers for welding

,

tank turning rolls

Heavy Duty Pipe Welding Rotator Pipe Welding Stands For Industry




Brief introduction:

Roller center distance is adjustable by reserved screw holes. Motorized trolley makes the rotator easy travelling on rail.





Pipe welding rotator description:

  • Various models ranging from 5 tons to 500 ton capacity, higher models are custom built upon request.
  • Our set of pipe welding rotator consists of 2 parts: a motorized drive (power) unit & an idler supporting unit.
  • The power unit is driven by a heavy duty AC motor which is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.
  • The heavy duty tyres are designed to 90 durable hardness with high stress rubber cushion mounts to absorb shock loads and prevent gear box damage.
  • The DC electronic function or Inverter comes with a remote control panel with interlocking reversing systems operating at temperatures in excess of 60%.Operator pendant is optional.





Feature:

  • The pipe welding rotators from the HGK series have a strong and durable construction with creates a very high stability.
  • The steel wheels of the pipe welding rotators enclose locked solid rubber tyres. From the capacity of 150 tons are they equipped with fully steel wheels.
  • These welding rotators have top-class electronic components, stepless adjustable speed of the driven part in CE marked. The favourable price performance ratio yields will ensure a quick payback of your investment.
  • HGK series pipe welding rotators can be supplied with a capacity from 5000 kg up to 1200 Tons.
  • We also provide tailor-made HGK welding rotators according to your special requirements.





Main Technical Parameters



Type

Max. load (kg)

suitable size of job (mm)

wheel Diameter and Width (mm)

Linear speed m/h)

Motor power (Kw)

Change
Speed way

PU wheel

Metal wheel

HGK 5

5000

Φ250-2300

Φ250×100

2×Φ240×20

6-60

2×0.37

Veriable frequency stepless driving


HGK10

10000

Φ320-2800

Φ300×120

2×Φ290×25

6-60

2×0.55

HGK20

20000

Φ500-3500

Φ350×120

2×Φ340×30

6-60

2×1.1

HGK40

40000

Φ600-4200

Φ400×120

2×Φ390×40

6-60

2×1.5

HGK60

60000

Φ750-4800

Φ450×120

2×Φ440×50

6-60

2×2.2

HGK80

80000

Φ850-5000

Φ500×120

2×Φ490×60

6-60

2×2.2

HGK100

100000

Φ1000-5500

Φ500×120

2×Φ490×80

6-60

2×2.2

HGK160

160000

Φ1100-6000

/

Φ620×220

6-60

2×3

HGK250

250000

Φ1200-7000

/

Φ700×260

6-60

2×4

HGK400

400000

Φ1300-7500

/

Φ800×320

6-60

2×5.5

HGK600

600000

Φ1400-8500

/

Φ900×400

6-60

2×7.5





Application:

  • Pressure vessels
  • Pipe manufactur ing industries
  • Wind power fabrication
  • Chemical & fuel storage tank fabrication
  • Any heavy cylindrical job

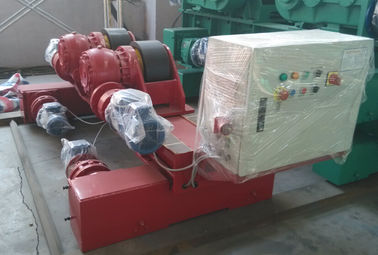

Delivery picture:



Motorize Bogie Moving Pipe Welding Rotator With Cycloidal Planetary Gear Reducer 0





What Ronniewell can do for Ronniewell customers:

  • Give you high quality products.
  • Give you five-star price.
  • Give you suitable recommendation.
  • Give you good after-service.
  • Give you professional technical guide.
  • Warmly welcome you visit our factory.





Name of the machine:


pipe welding rotator, pipe pipe welding rotator, pipe turning rolls, pipe welding rotators, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned pipe welding rotator, self-aligning pipe welding rotator, self adjustable pipe welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional pipe welding rotator, bolt adjustable pipe welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station
