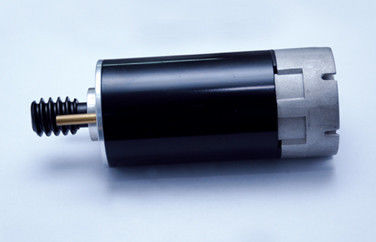

65mm diameter dc brushed motor for door openers durable / automatic door motor

65mm diameter dc brushed motor for door openers durable / automatic door motor

65mm diameter dc brushed motor for door openers durable / automatic door motor

Product Details:

Place of Origin: China
Brand Name: Sherry Motors
Certification: TS-16949/RoHS/ISO14001
Model Number: 65ZYT

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: USD 25.00-35.00 per unit
Packaging Details: Carton or negotiation
Delivery Time: 30 working days after received your payment
Payment Terms: negotiation, T/T
Supply Ability: 8,000pcs/month
Contact Now
Detailed Product Description

 65mm diameter dc brushed motor for door openers durable / automatic door motor

  1. Dynamically balanced armatures with the advanced machining capacities enables our complete brushed DC motors to be in a consistent quality.
  2. The nominal working voltage is optional at 24VDC or 36VDC.
  3. Special windings set up at 90VDC and 1.5A are also available to please your final applications.
  4. The motor body length can be flexible to achieve different rated torques due to a space constraint of your target applications.
  5. Dual NMB or SKF ball bearings could be adopted for life-prolonging.
  6. The rubber cap with the screwway outside has been heat-sealed with the extended shaft for a further assembly with your applications.

Applications:

   They are widely applied to door openers as well as some other battery powered devices.



Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No-load Current (A)

No-load Speed (rpm)

Rated Torque (N.m)

Motor Body Length (mm)

65ZYT001

36

3.5

2800

0.3

3600

0.30

110

65ZYT002

90

1.5

2600

0.15

3400

0.25

100

65ZYT003

24

7.0

3000

0.6

4000

0.40

100

















​​

Dimensions:

(Unit=mm)

65mm diameter dc brushed motor for door openers durable / automatic door motor
