IEC60335 PLC Automatic Washing Machine Door Performance Tester

IEC60335 PLC Automatic Washing Machine Door Performance Tester

    • IEC60335 PLC Automatic Washing Machine Door Performance Tester
    • IEC60335 PLC Automatic Washing Machine Door Performance Tester
    • IEC60335 PLC Automatic Washing Machine Door Performance Tester
    • IEC60335 PLC Automatic Washing Machine Door Performance Tester
    • IEC60335 PLC Automatic Washing Machine Door Performance Tester
  • IEC60335 PLC Automatic Washing Machine Door Performance Tester

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: MDE-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Plywood
    Delivery Time: 25 days
    Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
    Supply Ability: 10 Pcs/Month
    Contact Now
    Detailed Product Description
    Standard: IEC60335-1, IEC60335-2-7 Control Mode: Advanced PLC Control
    Display Mode: 7-inch Color Touch Screen Frame Structure: High-grade Aluminum

    IEC60335 PLC Automatic Washing Machine Door Performance Tester



    Production introduction:



    The washing manchine door opening endurance test device conforms to IEC60335-1, IEC60335-2-7 standard clause 18.101and clause 22.104, meet the household electric washing machine safety requirements, it is used for washing machine door opening and closing durability test.



    It adopts to the most advanced PLC plus stepper motor control, with 100% stainless steel

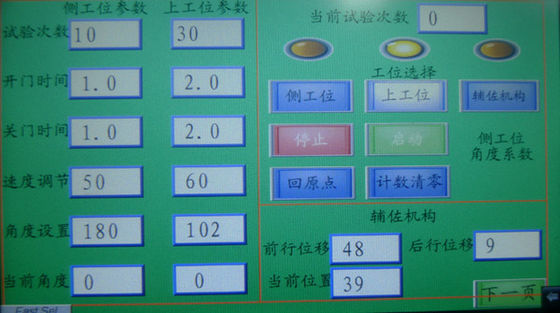

    manipulators and vacuum chuck; and it has standard TFT true color LCD touch screen, can be

    preset test angle and speed, so realistically simulate a washing machine door opened and closed

    manually, achieve intelligent control.

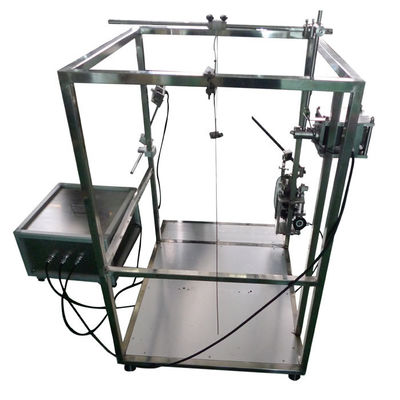

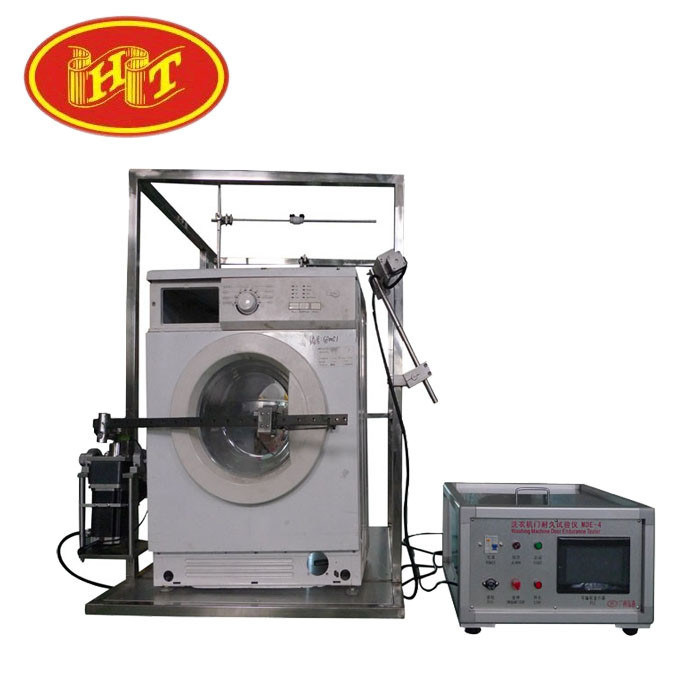

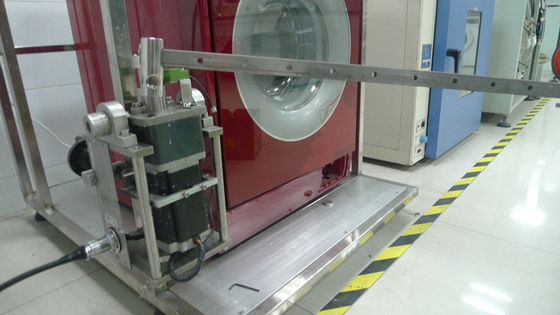

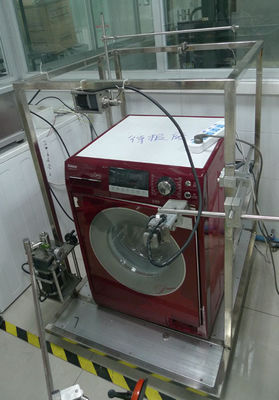

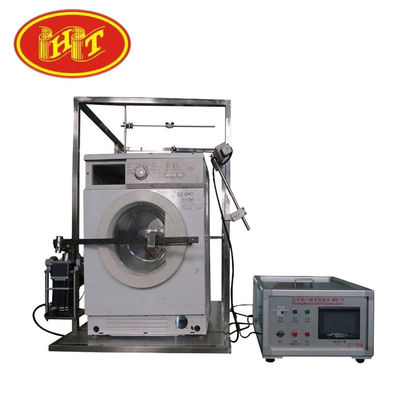

    The test equipment consists of an electrical control cabinet, a sample holder and two mounted

    robotic composition (stepper motor driver). The rack is made of high-grade aluminum extrusions,

     manipulator are mounted on the rack beams and pillars, can meet the

    left door and the door of the washing machine test on different sizes, it is versatility.





    Main technical parameters:



    1. Work power: AC 220V 50HZ or AC 110V, 60Hz

    2. Control mode: PLC

    3. Display mode:7-inch touch screen

    4. Frame structure material: High-grade aluminum

    5. Manipulator: One size manipulator and one upper manipulator,

    you can replace the vacuum chuck and the gripper device

    6. Assistance device: 0-50mm stroke adjustable

    7. Chassis adjustment device: Adjust  the sample to be level or tilt

    8. Test times: 0-999999 adjustable, automatically  shutdown when it reaches the preset number

    9. Opening / closing time: 0-9999S adjustable

    10. Opening / closing rate: adjustable

    11. Opening angel: Side manipulator 0-180°adjustable; upper manipulator  -30-90°

    12. Work station: Single(left door openning or upper door openning )

    13. Rack Size: 800*1000*1200mm

    14. Sample door detection: Sample Open 50mm outage detection

    15. Standard: IEC60335-1, IEC60335-2-7



    IEC60335 PLC Automatic Washing Machine Door Performance Tester
