50/60HZ Automatic Sliding Door Parts Operator Microcomputer Manage and Control Device

50/60HZ Automatic Sliding Door Parts Operator Microcomputer Manage and Control Device

  • 50/60HZ Automatic Sliding Door Parts Operator Microcomputer Manage and Control Device
50/60HZ Automatic Sliding Door Parts Operator Microcomputer Manage and Control Device
Product Details:
Place of Origin: Ningbo
Brand Name: FLY,OEM
Certification: CE
Model Number: DC75
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: USD 280-350
Packaging Details: plastic bag,carton
Delivery Time: 3 days after receiving customer's payment
Payment Terms: T/T, Wester Union
Supply Ability: 5000 PCS per month
Contact Now
Detailed Product Description
High Light:

automatic garage door parts

,

automatic door parts

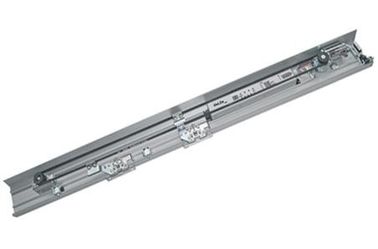

50/60HZ Automatic Sliding Door Parts Operator Microcomputer Manage and Control Device

(1)Intelligence: The sliding operator is controlled by micro computer chips. It is easy to install and use. Users just need to select a set open time or close time , the door can keep working very well.
Safety: The sliding operator can work with security sensor which can prevent people from nipping, so it is safe for users. With inner unique electric lock, the operator can lock the door without mechanical locks. We also can provide emergency power when power fails; it can let the door open in urgent situations.


(2)Reliability: Thanks to professional mechanic design and high-efficiency DC brushless motor, the sliding operator can work very well with low noise for a long time. With the help of advanced synchronous belt and perfect design of power supply circuit, the door moves very stably.

(3)Environmental: To maintain the overall environment of power, the quiet condition for the new concept of beam structure design, and new material apply, will not cause resonance transmission, therefore, more light running noises made milder.


(4)Energy Saving: With the help of semi-open function, the sliding operator can automatically set the width of the entrance, so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well.

(5)Purification of: Using double interlock, can reduce indoor purify air escaping, prevent cross contamination, satisfy requirement, good sealing of sound insulation effect.

(6)Convenience: Open and closed timely, sensitive and quick, people need to begin, energy, light. Simple, fast loading

TECHNICAL SPECIFICATION:



Door Model

Single Leaf

Double Leafs

Weight Door

≤100kg

≤100kg×2

Door Width

700~1300mm

600~1250mm

Control Device

Microcomputer Manage and Control Device

Motor

DC 24V 55W Motor Without Brush

Opening Speed

 15~50cm/Sec(Adjustable)

 15~45cm/Sec(Adjustable)

Closing Speed

 10~45cm/Sec(Adjustable)

 10~43cm/Sec(Adjustable)

Open Door Pause Time

Adjustable within 0.5~8Sec

Manual Push Force

Maximum 4.5kg

Power and Voltage

 AC200~250V   50/60HZ

Working Temperature

-20+50°C

Optional Parts

Interlock, Punch the Card, Electric Lock
