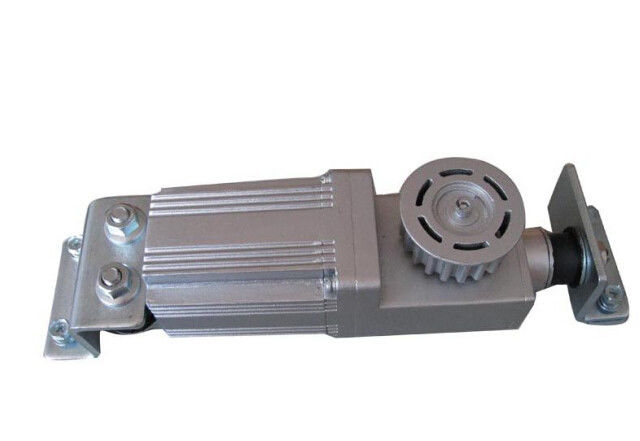

Brushless DC Electric Roller Shutter Automatic sioding Door Motor High Torque 24V DC 60W 2500RPM Single-phase

Brushless DC Electric Roller Shutter Automatic sioding Door Motor High Torque 24V DC 60W 2500RPM Single-phase

  • Brushless DC Electric Roller Shutter Automatic sioding Door Motor High Torque 24V DC 60W 2500RPM Single-phase
Brushless DC Electric Roller Shutter Automatic sioding Door Motor High Torque 24V DC 60W 2500RPM Single-phase
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4009-C6
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: standard export carton, CTN size:55*31*H30cm 50pcs/CTN G.W.:20Kgs
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Phase: Single-phase Protect Feature: IP40
Usage: Door Speed(RPM): 2300rpm
High Light:

roller door motors

,

sliding door motor

Brushless DC Electric Roller Shutter Door Motor High Torque 24V DC 60W 2500RPM , Single-phase



Quick Detail:



Brushless dc motor used for Automatic Sliding Door system, electric roller shutter door motor,24VDC 60W,2500RPM,





Description:



1.Basic specification:DC24V,60W,2500RPM S1,B CLASS,IP20,IP40

2.Rated torque of bare motor:318mN.m,229mNm

3.No-load noise of whole motor:<50dB,L=50cm

4.VE:AC66V,1S,5mA

5.Insulation resistance:>20MΩ 500V,>20MΩ 500V

6.Life:2500H,4000H

7.Ambient request:RoHs

8.Gear Ratio:8.5,12.5,13





Specifications:



  • Certification: CCC, CE, RoHS, UL
  • Function: Control
  • Structure: Asynchronous Motor
  • Phase: Single-phase
  • Power: DC
  • Usage: Door
  • Protect Feature: IP40
  • Speed: 2300rpm
  • Shape: Square







Applications:



Widely used in interior automatic sliding door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance

This is the most popular style of automatic sliding door motor that most of the world-wide end users are choosing
