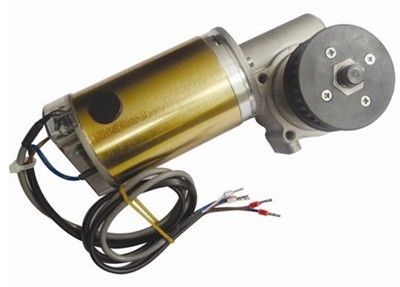

CW And CCW Round Brushed DC Automatic Sliding Door Motor 24V DC Worm Gear Box Long shaft

CW And CCW Round Brushed DC Automatic Sliding Door Motor 24V DC Worm Gear Box Long shaft

Quick Detail:

Interior Automatic Sliding Door Motor, Long Lifespan and Noise-free 24VDC 60W/100W

Description:

Permanent Magnet Brushed DC motor, worm gear box

Gear material: Plastic Dupont 100P

Aluminum Diecasting Gearbox

Motor housing: D63.5mm, Black coating or Zincification available

Rolled Steel Housing Construction

Encoder available, 20/40/100 pulse available

Various Output Shaft design

Metal or Plastic pulley available

Specifications:

• HS code: 8501310000
• Voltage: 24V
• Power: 60W/100W
• Unload speed: 245rpm (0.7A)
• On-load speed: 210rpm (2.5A)
• Stall torque: 12Nm (16A)
• Rotate direction: CW and CCW
• Protection class: IP 44

Applications:

Widely used in interior automatic sliding door system

Competitive Advantage:

CE certified:

• EC declaration of LVD conformity: low voltage, 2006/95/EC directive
• Certificate number: CLZJ1205291170
• EC declaration of EMC conformity: 2004/108/EC
• Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25℃to + 60℃

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
