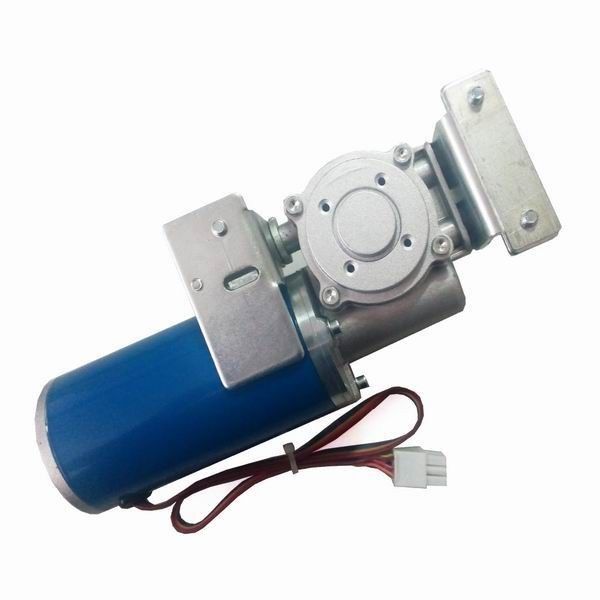

Round Automatic Sliding Door Motor Long Blue Casing Permanent Magnet High Efficiency 24 Voltage

Round Automatic Sliding Door Motor Long Blue Casing Permanent Magnet High Efficiency 24 Voltage

Description:

1.10 years experience
2.ISO900, CE Certificated
2.Great flexibility & OEM capacity
4.Silent working
5.Comtetitive Price

Permanent Magnet Brushed DC motor, worm gear box

Gear material: Aluminum Diecasting Gearbox

Motor housing: D63.5mm, Black coating or Zincification available

Rolled Steel Housing Construction

Various Output Shaft design

Metal or Plastic pulley available

Permanent magnet motor

Worm gearbox

Permanent lubrication by grease

Working temperature range -25C to + 60C

Encoder controlled

Specifications:

Applications:

Permanent Magnet Brushed DC 24VDC, 50W DC motor, and is encoder controller. It offers strong permissible torque and instantaneous reversing characteristics with low noise, long life and reliable performance. It features permanent magnet motor utilizing neodymium iron boron alloy, which is permanently mounted on the stator. As a result, the motor dispels its heat more evenly, preventing overhearing and increasing efficiency.

The motor also features a small commuter, resulting in lower wear on the motor’s brushes. As a result, the brushes on the motor, if used for automatic doors, can last for over 10 years, without need for replacement.

The motor also can used a hardened alloy steel worm with phosphor bronze gear, which provides much larger torque than traditional plastic gears.
