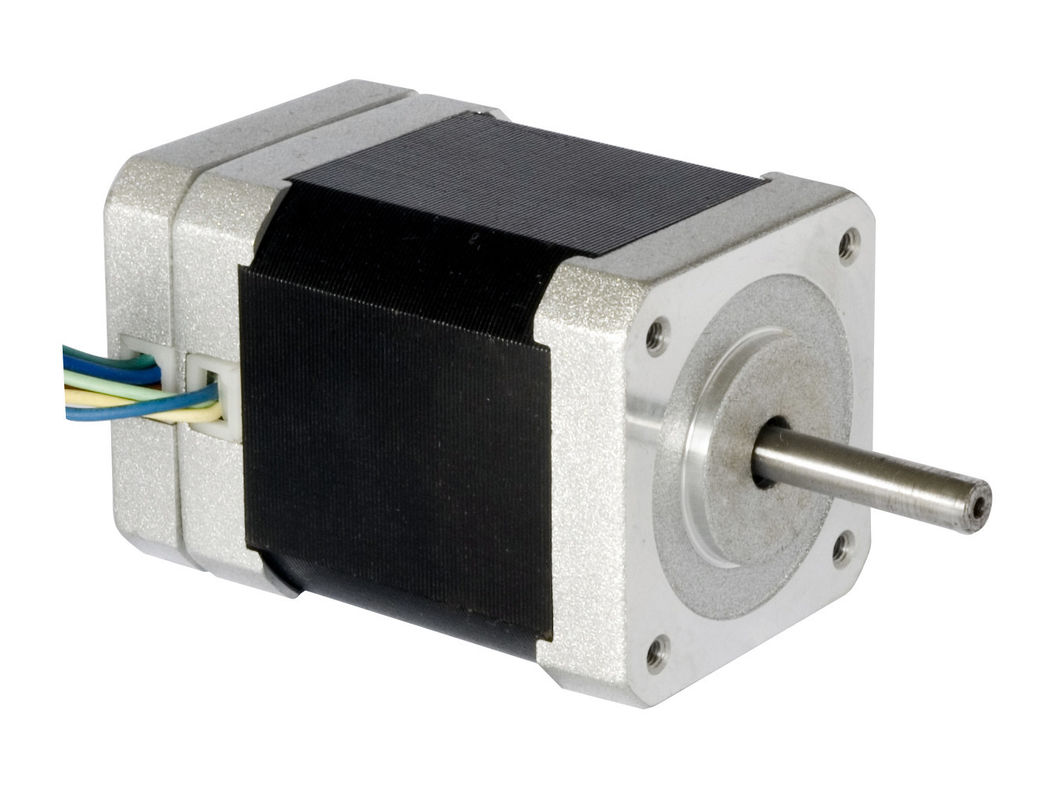

Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers

Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers

  • Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers
Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers
Product Details:
Place of Origin: China
Brand Name: Sherry Motors
Certification: TS-16949/RoHS/ISO14001
Model Number: 42BLF
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: USD 29.00-35.00 per unit
Packaging Details: Carton or negotiation
Delivery Time: 40 working days after received your payment
Payment Terms: negotiation, T/T
Supply Ability: 15,000pcs/month
Contact Now
Detailed Product Description
High Light:

high speed brushless dc motor

,

small brushless dc motors

Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers

  1. The BLF 42mm brushless DC motor has been optimized in performance to run at rated voltage of 24VDC and provides a configuration of 8-pole and 3-phase.
  2. 12VDC as the nominal voltage is also available to drive the brushless motor with a cost advantage.
  3. It is constructed with Wye windings connected with Hall sensors of Honeywell brand. The Hall sensor is designed to work from +5VDC to +20VDC, which shall be seriously taken into consideration when a driver has to be properly matched with the brushless motor in motion control.
  4. Our BLDC motor survives from the working condition from -20 degree Celsius to +50 degree Celsius, and the Insulation Class B or greater can be achieved to fit any of the OEM applications.
  5. Motor body length, extended shaft and the pilot can be customized to allow you more options to power your innovation.

Applications:

The application designers would mostly like to choose the brushless DC motor for their applications such as the printers, door openers, and factory automation equipment.


Specifications:



Model

Rated Voltage (V)

Rated Current (A)

Rated Speed (rpm)

No. of Pole

No. of Phase

Rated Torque (N.M)

Peak Torque (N.M)

Peak Current (A)

Torque Constant (N.M/Amps)

Back EMS (V/k RPM)

Rotor Inertia (g.cm2)

Motor Body Length  (L)

42BLF01

24

≤1.9

4000

8

3

0.063

0.18

≤5.7

0.035

3.7

24

47

42BLF02

24

≤3.4

4000

8

3

0.125

0.38

≤10.2

0.036

3.8

48

63

42BLF03

24

≤5.7

4000

8

3

0.188

0.75

≤18.0

0.036

3.8

72

79



Dimensions:
(Unit=mm)
Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers 0Square flange 24 VDC dc brushless motor auto-stacked stator for automatic sliding door openers 1
