|Voltage::||380V 3 Phase 60Hz Or Customized||Hydraulic Station Power:||5.5 KW|
IBR and Corrugated Double Layer Roll Forming With Machine Colored Steel Sheet And Galvanized Steel Sheet
Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.
The products are widely used in building the steel-structure large-scale warehouse,
plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages,
sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
available for two profiles roof panel shared one frame, save the cost.
Main roll forming system
1) Main motor power: 5.5kw
2) Drive: Chain
3) Main shaft dia: ￠70mm material: 45# forge steel and harden treated
4) Roller material: 45# high grade forge steel, chrome coated 0.05mm
5) Roll station: 14 groups for corrugated roof and 23 groups for IBR
6) Logo on sheet: (WAWAKI)Engraving on one roller
7) Raw material: 0.3-0.9mm
8) Working method: One layer working and the other stoped
9) Working speed: 10-15m/min(Exclude cutting time)
10) Weight of machine: about 6ton
11) Size of machine: About 8000×1600×1800mm L x W x H
12) Color of machine: depend on customer
13) Coder: Omron
14) Control: PLC Panasonic, made in Japan. 380V 50HZ,3phase
15) Computer operating panel: touching screen
16) Cutting: Hydraulic cutting
17) Auto cutting when reach the set length.
18) Hydraulic power: 3KW
19) Blade material: Cr12,quenched 58°-62°
20) Working pressure:16mpa
21) Cutting tolerance: +/- 1.5mm
5T manual uncoiler
Main Roll forming(cutting, PLC computer, Hydraulic system)
a) The structure is H beam base with welded steel plate stand which is very strong and good performance.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) The machine is much convenient and efficiency
a) Engineer will give free training lessons to labors in buyer’s factory.
b) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
c) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
d) We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

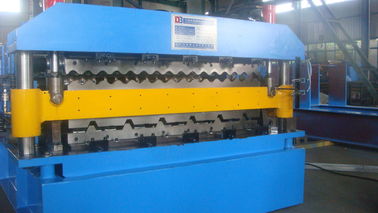

Photo for refer:

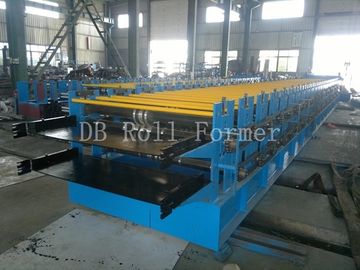

Machine for refer:
