5.5KW Motor Power Double Layer Roll Forming Machine PLC Panasonic

Product Details:

Place of Origin:	China
Brand Name:	DB
Certification:	CE;SGS
Model Number:	According to profile

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD20000-35000/set
Packaging Details:	1.nude package and fixed by steel rope. 2.A full set of 40GP container.
Delivery Time:	35days
Payment Terms:	TT/LC
Supply Ability:	5sets/month

Contact Now

Detailed Product Description

Color:	Client's Request	Control System:	PLC
Product Name:	Roof Panel Step Tile Roll Forming Machine	Roller Material:	45#steel Chrome Plated
Roller Stations:	Different Profile With Different Stations
High Light:	sheet metal roll forming machines , portable roll forming machines

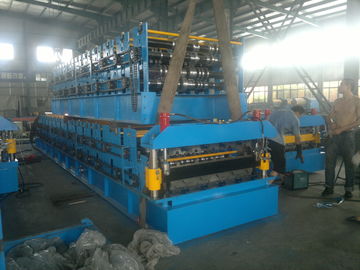

5.5KW Motor Power Double Layer Roll Forming Machine PLC Panasonic

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

Application:

The products are widely used in building the steel-structure large-scale warehouse,

plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages,

sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Advantage:

available for two profiles roof panel shared one frame, save the cost.

First in quality

First in time

First in price

First in services

Technical Parameters:

Main roll forming system

1) Main motor power: 5.5kw

2) Drive: Chain

3) Main shaft dia: ￠70mm material: 45# forge steel and harden treated

4) Roller material: 45# high grade forge steel, chrome coated 0.05mm

5) Roll station: 14 groups for corrugated roof and 23 groups for IBR

6) Logo on sheet: (WAWAKI)Engraving on one roller

7) Raw material: 0.3-0.9mm

8) Working method: One layer working and the other stoped

9) Working speed: 10-15m/min(Exclude cutting time)

10) Weight of machine: about 6ton

11) Size of machine: About 8000×1600×1800mm L x W x H

12) Color of machine: depend on customer

13) Coder: Omron

14) Control: PLC Panasonic, made in Japan. 380V 50HZ,3phase

15) Computer operating panel: touching screen

16) Cutting: Hydraulic cutting

17) Auto cutting when reach the set length.

18) Hydraulic power: 3KW

19) Blade material: Cr12,quenched 58°-62°

20) Working pressure:16mpa

21) Cutting tolerance: +/- 1.5mm

Component:

NO.	Product	QTY
1	5T manual uncoiler	1
2	Main Roll forming(cutting, PLC computer, Hydraulic system)	1
3	Output shelf(Freely)	2

Working flow:

Uncoiler—Feeding—roll forming--- hydraulic cut to length—output table

Character of main structure

a) The structure is H beam base with welded steel plate stand which is very strong and good performance.

b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d) It is very easy to install the equipment and suitable for producing in the factory.

e) The machine is much convenient and efficiency

Guarantee:

a) Engineer will give free training lessons to labors in buyer’s factory.

b) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.

c) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

d) We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
