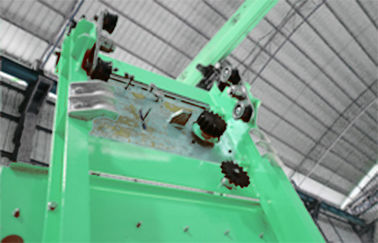

Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity

Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity

    • Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity
    • Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity
    • Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity
  • Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Boruida
    Certification: CE
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Pack in container
    Delivery Time: 30-45 working days
    Payment Terms: T/T before shipment, LC at sight
    Supply Ability: 40pcs a month
    Contact Now
    Detailed Product Description
    Surface Treatment: Hot Galvanized Control System: FC
    Material: Q345B Safety Device: SAJ 40 - 1.
    Inverter: 55KW Motor Power: 3x22KW

    Galvanized Rack And Pinion Hoists CH300 with Single Cage, 3000kg High Capacity





    Orbit Hoists



    Boruida Machinery Co, is the most professional and innovative construction hoist manufacturer in China. All products comes with a CE certification and products are used for carrying personnel and material to facilitate above ground construction work on high buildings, bridges, residential apartments, chimney, wind trubine etc.



    Quick Detail:



    Name

    other name

    Brand Name

    Control

    Rack and pinion hoist

    Rack and pinion hoist CH300

    BORUIDA

    DOL and FC

    Loading Capacity

    300kg

    Certificate

    CE





    Description:



    Rack and pinion hoists are designed from the drawing board not only to excel as people carriers in multiple applications, but also to be able to handle materials of loads up to 3,200 kilograms. All rack and pinion hoists are built to last in the harshest environments.





    Applications:



    Rack and pinion hoists are built to withstand harsh environments and installations with or without an existing hoist shaft.





    Specifications

    Standard technical datas of single car :



    Parameter

    CH300

    CH500

    CH750

    Rated
    loading capacity
    (kg)

    300

    500

    750

    Rated lifting speed
    (m/min)

    0~40

    0~40

    0~40

    Rated passenger number

    12

    18

    24

    Max. lifting height(m)

    150

    200

    200

    Engine power(kW)

    1*5

    2*5

    2*7.5

    Car inner dimension
    (L*W*H)(m)

    1*0.8*2.2

    1.2*0.8*2.2

    1.5*1*2.2

    Car weight (kg)

    527

    595

    689

    Mast section weight
    (kg)

    55

    55

    125

    Mast section dimension (mm)

    450*1508

    450*1508

    450*450*1508

    Safety device type

     SAJ30-1.2

    SAJ30-1.2

    SAJ30-1.2

    Hanger rated lifting capacity
    (kg)

    125

    125

    125

    Rack module

    5

    5

    5





    CH series rack and pinion hoists:



    1). Car load capacity: 300kg~750kg;

    2). Lifting speed:30m/min, 0~40m/min;

    3). Increased lifting height on request;

    4). Mast section: Painted or hot dipped zinc

    5). Car:double car

    6). Recommended car inner dimensions (L*W*H): 1*0.8*2.2 m,1.2*0.8*2.2 m,1.5*1*2.2 m, according to requirements of customers;

    7). Motor and reducing device: Made in China, or uses SEW according to requirements

    8). Color of car: Yellow, red, blue or your request

    9). Car load capacity: 300kg, 500kg, 750kg

    10). including VFD or without VFD.



    Competitive Advantage:





    1). Ideal for tough environments

    2). No enclosed hoistway or shaft needed

    3). Suitable for both indoor and outdoor installation

    4). Small footprint

    5). No machine room required

    6). Few changes required to buildings and structures

    7). Easy to retrofit on existing buildings or structures

    8). No lifting height limit

    9). High capacity and speed

    10). Accurate levelling at landings

    11). Safe descent during a power outage

    12). Durable and easy to maintain

    13). Wide range of optional equipment and functions





    Multiple safety device of our hoists:

    1. Falling protection device
    2. Load lifting limit
    3. Limit switch
    4. Upper limit
    5. Lower limit
    6. Door limit
    7. Escaping window limit
    8. Emergency stop
    9. Buffering
    10. Overload protection device for electric hoist
    11. Transformer short-circuit protection
    12. Phase sequence protection
