Electric Rack And Pinion Hoists
Product Details:
Place of Origin: China
Brand Name: Boruida
Certification: CE
Model Number: -
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pack in container
Delivery Time: 30-45 working days
Payment Terms: T/T before shipment, LC at sight
Supply Ability: 40pcs a month
Contact Now
Detailed Product Description
High Light:

rack and pinion lift

,

material handling hoist


CH3200 Painted Rack And Pinion Hoists With Llifting Height 250m



Quick Detail:



Name

Other Name

Brand Name

Control

Rack and pinion hoists

Rack and pinion hoists CH 3200/3200

BORUIDA

DOL and FC

Loading Capacity

3200kg/3200kg

Certificate

CE



Description:

Rack and pinion hoists CH 3200/3200 is installed and dismounted conveniently and can grow as high as the building grows height.The Rack and pinion hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment


Applications:

CH serialization of products Rack and pinion hoists is a Rack and Pinion EL. Rack and pinion hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.


Specifications



Standard technical datas of  double cars:



Parameter

CH1000/1000

CH1600/1600

CH2000/2000

CH2700/2700

CH3200/3200

Rated
loading capacity
(kg)

1000/1000

1600/1600

2000/2000

2700/2700

3200/3200

Rated lifting speed
(m/min)

0~40

0~40

0~60

0~60

0~60

Rated passenger number

12/12

18/18

24/24

30/30

38/38

Max. lifting height(m)

150

250

450

450

450

Engine power(kW)

2*2*9.5

2*2*11

2*2*13

2*3*18.5

2*3*22

Car inner dimension
(L*W*H)(m)

3*1.3*2.5

3*1.4*2.5

3*1.5*2.5

3.2*1.5*2.5

3.6*1.6*2.5

Car weight (kg)

1400

1500

1800

1950

2050

Mast section weight
(kg)

145

145

163

163

163

Mast section dimension (mm)

650*650*1508

650*650*1508

650*650*1508

650*650*1508

650*650*1508

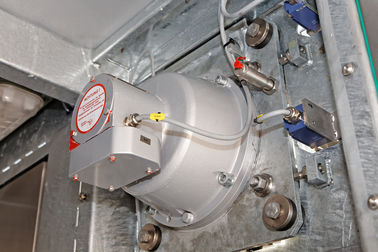

Safety device type

 SAJ30-1.2

SAJ40-1.2

SAJ40-1.4

SAJ40-1.4

SAJ50-2.0

Hanger rated lifting capacity
(kg)

250

250

250

250

250

Rack module

8

8

8

8

8





CH series rack and pinion hoists:



1). Car load capacity: 1000kg~3200kg;

2). Lifting speed:33m/min, 0~40m/min;0~60m/min;

3). Increased lifting height on request;

4). Mast section: Painted or hot dipped zinc

5). Car:double car

6). Recommended car inner dimensions (L*W*H): 3*1.3*2.5m, 3*1.4*2.5m, 3*1.5*2.5m, 3.2*1.5*2.5m, 3.6*1.5*2.5m, according to requirements of customers;

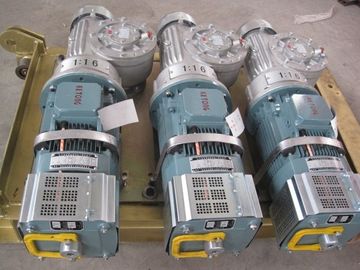

7). Motor and reducing device: Made in China, or uses SEW according to requirements

8). Color of car: Yellow, red, blue or your request

9). Car load capacity: 1, 000kg, 1, 600kg, 2, 000kg, 2, 700kg or 3, 200kg

10). including VFD or without VFD.





Competitive Advantage:



1). Compact design and comfortable operation environment

2). Proven helical gearbox as an option

3). Single and double car configurations

4). Design without countweight

5). Multiple choices of doors

6). Simple and easy operation system

7). Recessed control panel

8). PLC control as an option

9). Dorable materials:high quality steel for increased strength and weight reduction,hot dip

10). galvanized mast section and tie-in

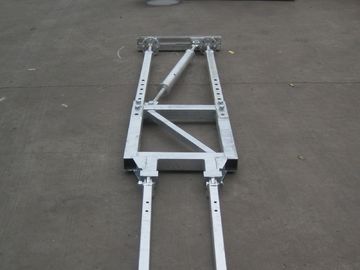

11). Wide range of tie-in

12). Wide range of optional equipment and functions
