Double Layer Roll Forming Machine for Corrugated Roof and IBR Roof in One Line

Double Layer Roll Forming Machine for Corrugated Roof and IBR Roof in One Line

Application:

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Advantage:

available for two profiles roof panel shared one frame, save the cost.

1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
    a) Fine profile
    b) Attractive color
    c) Agile connecting
    d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles

Technical Parameters:

Consists:

Automatically cut to length, PLC control, alternating Current Frequency Conversion.

a. 5 Ton Mechanical uncoiler

b. guiding and feeding device

c. roll forming machine

d. run out table

e. PLC controller

f. hydraulic post-cutting equipment

g. electrical control system

h. hydraulic system, etc.

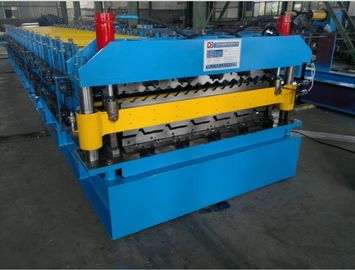

Main machine pictures
