Customize Double Layer Roll Forming Machine with 10 - 12Mpa Hydraulic Pressure

Product Details:

Place of Origin:	China
Brand Name:	DB
Certification:	CE & SGS
Model Number:	According to profile

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD20000-35000/set
Packaging Details:	1.nude package and fixed by steel rope. 2.A full set of 40GP container.
Delivery Time:	35days
Payment Terms:	TT/LC
Supply Ability:	5sets/month

Contact Now

Detailed Product Description

Voltage:	Or As The Customer's Requirement	Certification:	CE/ISO
Use:	Roof/wall	Condition:	New
Dimension(lwh):	Depend On Design	Cutting Blade Material:	Cr 12 Mov
Roller Stations:	14-20 Stations
High Light:	sheet metal roll forming machines , portable roll forming machines

Customize Double Layer Roll Forming Machine with 10 - 12Mpa Hydraulic Pressure
Application:
Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.
The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Technical Parameters:

Material Spec:	Colored Steel Sheet; Galvanized Steel Sheet
Thickness of Coil Sheet:	0.3-0.8mm
Main Motor Power:	5.5KW
Forming Speed:	15-18M/MIN
Hydraulic Station Power:	5.5 KW
Quantity of Stands:	17 Stands
Total Weight:	About 80000KGS
Controlling System:	PLC
Hydraulic Pressure:	10-12Mpa
Index Error of Length:	10M ± 2mm
Voltage:	380V 3 Phase 60Hz or At Buyers Requirement

Main component:

Decoiler ---------------------------------------------- 1 Unit
Feeding guide ---------------------------------------1 Unit
main roll forming machine ------------------------ 1 Unit
Hydraulic cutting device -------------------------- 1 Unit
Hydraulic Station ------------------------------------1 Unit
PLC computer control ------------------------------1 Unit
Output table ----------------------------------------- 1 Unit

Advantage:

available for two profiles roof panel shared one frame, save the cost.
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles

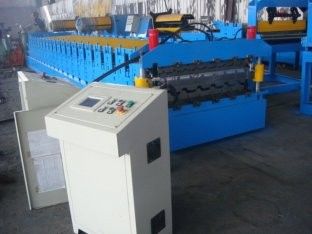

Machine for refer:

Customize Double Layer Roll Forming Machine with 10 - 12Mpa Hydraulic Pressure 0
