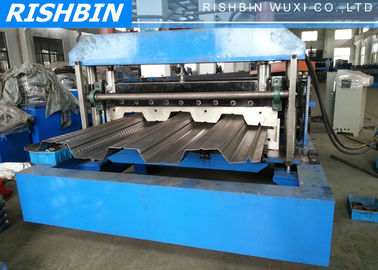

Galvanized Steel Sheet Deck Roll Forming Machinery

Galvanized Steel Sheet Deck Roll Forming Machinery

    • Galvanized Steel Sheet Deck Roll Forming Machinery
    • Galvanized Steel Sheet Deck Roll Forming Machinery
  • Galvanized Steel Sheet Deck Roll Forming Machinery

    Product Details:

    Place of Origin: China
    Brand Name: RISHBIN
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Contact Us
    Packaging Details: Standard packing
    Delivery Time: 60 working days
    Payment Terms: T/T, L/C
    Supply Ability: 200 Sets Per Year
    Contact Now
    Detailed Product Description
    Width Of The Plate: 1500mm Rollers: 26 Rows
    Processing Precision: Within 1.00mm Rolling Material: High Grade 45# Steel(plated Chrome On Surface)
    Thickness Of The Plate: 1.2mm Voltage: 380V 50Hz 3phases

    Galvanized Steel Sheet Floor Deck Roll Forming Machinery with 26 Rows High Precision





    Description of Floor Deck Roll Forming Machine



    No



              Technical Specification

    1

    Auto-Uncoiler

    Usage:It is used to support the steel coil and uncoil it in a turnable way

    The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm

    2

    Feeding Table

    Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat

    Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

    3

    Main Roll Forming Machine

    Material of rollers:45# steel,roller surfaces polishing, hard plating

    The polished surface and the heat treatment towards the molds also can keep the molding

    Plate surface smooth and not easy to be marked when it is being stamped

    4

    Hydraulic System

    Computer Control Cabinet

    Power:4kw,Hydraulic oil: 40#

    Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

    The target piece`s length is adjustable and digit of it can be adjusted

    Computed mode has two modes: automatic and manual one

    The system is easy to operate and use

    PLC:EURA

    5

    Shearing Mechanism

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12,quenching treatment

    6

    Auto Stacker

    Start reducer quickly after finish cutting products, deliver products to hold arms by deliver rollers

    Then pneumatic control stack on the store table which is movable

    Pneumatic pump (power sources) is self supply.





    Specifications of Floor Deck Roll Forming Machine



    No.

               Main Parameters of  Floor Deck Roll Forming Machine

    1

    Suitable to process

    Colored Steel plate, galvanized board, aluminum plate

    2

    Certificated

    CE and ISO

    3

    Control system

    PLC control

    4

    Productivity

    20m/min

    5

    Width of the raw material

    1500mm

    6

    Thickness of the plate

    1-1.5mm

    7

    Rollers

    26rows

    8

    Diameter of the rollers

    Φ90mm

    9

    Rolling galvanization thickness

    0.05mm

    10

    Main moter power

    22kw

    11

    Hydraulic unit power

    7.5kw

    12

    Voltage

    380V 50Hz 3phases

    13

    Material of the cutting blade

    Cr12

    14

    Dimension

    11900*1850*1650mm



    Competitive Advantageee:e



    Heavy duty capacity for deck production with various profile and pattern to suit for defferent requirment. No hydaulic powerpack required more suitable for working in higher temperature environment. Cassette type design is available.



    Steel Floor decking Roll forming machine
    Galvanized Steel Sheet Deck Roll Forming Machinery





    We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following are some floor decking panel profiles as reference.



    Galvanized Steel Sheet Deck Roll Forming Machinery





    Applications:



    Steel Roof Deck sheets can be used as a composite floor system or as a permanent form work. It binds withconcrete slab and together forms a part of the floor structure. The interlocking between the concrete and theroof floor deck occurs by a system of embossment and ribs that are built into the deck, creating a reinforced concert slab. This fast and simple installation using high strength product, gives immediate access to a working platform of permanent form and positive reinforcement. With its advantage, the steel roof deck is widely used various steel constructions



    1. Versatility

    2. Structural Strength with Less Weight

    3. Attractive Appearance

    4. All Weather Construction

    5. Proven Durability

    6. Economy and Value
