    Product Details:

    Place of Origin: China
    Brand Name: Guangcai
    Certification: CE
    Model Number: YX Silo

    Payment & Shipping Terms:

    Minimum Order Quantity: 1x 20’GP
    Price: Negotiation
    Packaging Details: Standard
    Delivery Time: 15 days
    Payment Terms: T/T
    Supply Ability: 100 x 20’GP/year
    Contact Now
    Detailed Product Description

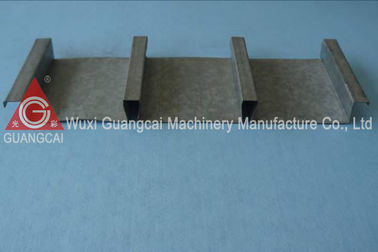

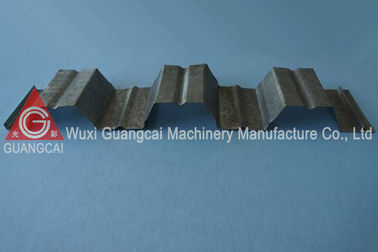

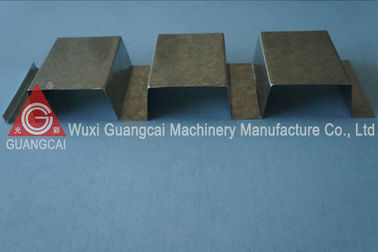

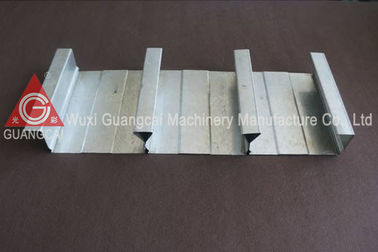

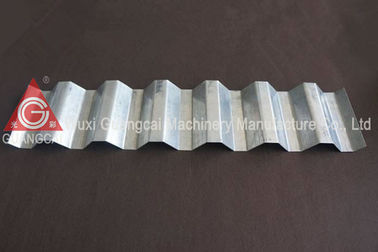

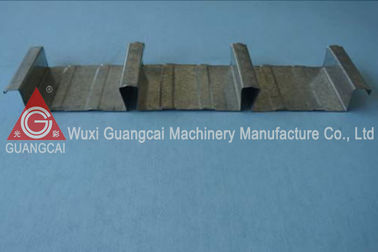

    Galvanized Steel Floor Deck Steel Roll Formed Products 0.4mm - 0.8mm





    Quick Detail:





    Description:



    The floor deck, also called composite floor decking or metal profile sheet, is roll formed by galvanized steel plate. The cross section resembles a letter V, letter U, trapezoid shape or other similar corrugated shapes. This material mainly serves as the permanent formwork of the buildings or for other purposes. Additionally, we can develop specific mould to make the product according to the drawings provided by out clients.



    Features


    1.This product meets the demand of the main steel structure in rapid construction. It is used to build firm operation platform in a short time. The flow construction operation is an option that workers can lay down the metal profile plate in multiple floors and then hierarchically cast the concrete slabs.
    2. As the tensile reinforcement of the concrete floor slab, the floor deck increases the rigidity of the floor and saves the steel bar and concrete.
    3. The embossing on the surface of this product maximizes the binding force between the product and the concrete and makes them a whole unit. Together with the stiffening rib, the whole system of the product is enhanced with high bearing capacity.





    Application


    This metal profile sheet is widely used in steel structured buildings like the power plant, electrical equipment company, automobile exhibition hall, steel structure workshop, cement storeroom, steel structure office, terminal building in the airport, train station, stadium, music hall, theatre, super market, logistics center and Olympic venues, etc.





    Specifications:



    Usage Model Thickness Feeding width
    Floor deck YX35-125-750 0.4mm - 0.8mm 1000mm





    Usage Model Thickness Feeding width
    Floor deck YX51-200-600 0.4mm - 0.8mm 1200mm





    Usage Model Thickness Feeding width
    Floor deck YX50-200-600 0.4mm - 0.8mm 1000mm





    Usage Model Thickness Feeding width
    Floor deck YX51-342-1025 0.4mm - 0.8mm 1250mm





    Usage Model Thickness Feeding width
    Floor deck YX65-185-555 0.5mm - 0.6mm 1070mm





    Usage Model Thickness Feeding width
    Floor deck YX75-200-600 0.4mm - 0.8mm 1000mm





    Competitive Advantage:



    We have own production lines, can control cost, lead time well
