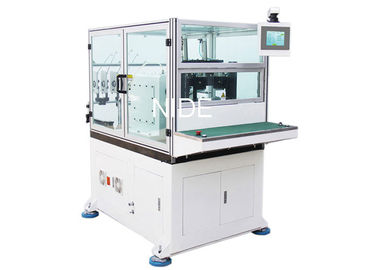

Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment

Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment

    • Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
    • Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
    • Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
    • Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
    • Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
  • Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: ND-TS-1A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 50 working days
    Payment Terms: T/T, L/C
    Supply Ability: 100 set per year
    Contact Now
    Detailed Product Description
    Machine Size: Middle Size After-Sales Service: Overseas Service Center Available
    Certificate: CCC Condition: New
    Application: Winding Stator Coil Stator O.D Range: 50-150mm
    Data Set: Touch Screen Weight: 1200KG



    Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment



    Applications:

    This type of automatic stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor, vacuum cleaner motor etc.





    Quick Detail:

    1. Double working station, double flyer.
    2. Manually fitting mould, and straining and releasing the mould with hand control lever.
    3. Automatically winding
    4. Quickly replace the tooling gripper;
    5. Travel, tilt angle can be adjusted;
    6. The stator winding machine is easy to set parameters, alarm available.
    7. PLC and touch screen control.





    Description:

    Automatic Stator Winding Machine Double Working Stations Double Flyers

    ND-TS-1A stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor, vacuum cleaner motor etc. It can wind two stators at same time. It's self-locked, quick and convenient. Winding parameter can be set and saved through the touch screen.





    Specifications :

    Item

    Specification

    Wire diameter

    0.15-1.3mm

    Stator O.D range

    50-150mm

    Stack length

    10-70mm

    Pole no.

    2 poles

    Turn number

    0-9999

    Spindle speed

    0-450 rpm

    Motor power

    4.5KW

    Air supply pressure

    5-7 Kg/cm2

    Voltage

    Three phase AC380V50/60Hz

    Weight

    1200Kg

    Dimension

    1050(length)X2300(width)X1750(height)mm





    Operation procedure of this machine

    Fix the winding tools on stator core, then put stator core on the loading base, press START button, safety door will close, loading base will move inside to the winding position, machine will automatic winding and cut wire, at this time, operator could fix the winding tools on another two stator cores; after finishing winding, loading base will move outside, safety door opened, then take out the completed stator, and put another two stator cores on the loading base, one cycle is completed.



    Competitive advantages:

    Easy operation, high automation. PLC and touch screen control, double working stations.



    Automatic double flyer stator winding machine picture:

    Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment

    Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
