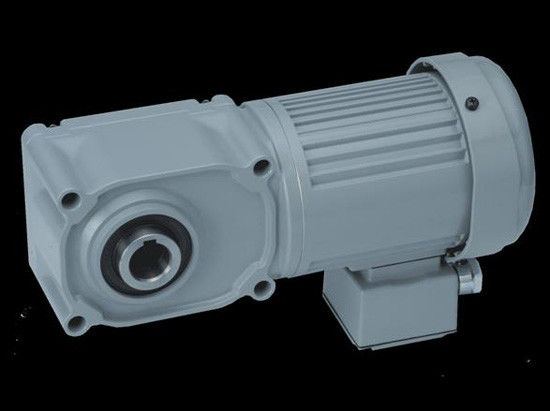

Waterproof aluminium alloy Small Gear Motor Two or three stage transmission

Waterproof aluminium alloy Small Gear Motor Two or three stage transmission

  • Waterproof aluminium alloy Small Gear Motor Two or three stage transmission
  • Waterproof aluminium alloy Small Gear Motor Two or three stage transmission
Waterproof aluminium alloy Small Gear Motor Two or three stage transmission
Product Details:
Place of Origin: Hangzhou,China
Brand Name: EASTSUN
Certification: ISO9001/CE/CCC
Model Number: G3LM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 25 working days after received your payment
Payment Terms: T/T or D/P or L/C
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Gearing Arrangement: Helical Output Torque: 388N.m
Rated Power: 0.1---2.2KW Input Speed: 1400 Rpm
Output Speed: 7---280rpm Warranty: 1 Year
Colour: Blue/Silver Gear Housing Material: Cast Iron Or Aluminium Alloy
High Light:

micro gear motor

,

lightweight electric motors

Waterproof Aluminium Alloy Helical Gear Motor Two Or Three Stage Transmission





Specifications



1. Helical geared motor
2. Foot mounted
3. Ratio,5---200:1,rated power,0.1---2.2kw
4. Aluminium alloy & cast iron body

G3 series helical geared motor,

1. Two types of housing: Aluminum alloy and cast iron; Two kinds of frames: foot mounting and flange mounting. They are good-looking in appearance, suitable for universal mounting.

2. Helical gear with the high-tensile alloy material makes the construction more compact, housing smaller, efficiency higher, output torque larger.

3. Hardened facing & well finished transmission gear has the advantages : seldom distortion, high precision,stable transmission, lower noise, possible for continuous work under the dreadful conditions.

4. With 6 specification for the diameter of output shaft: Ø18,Ø22,Ø28,Ø32,Ø40,Ø50.

5. Two or three-stage transmission, large in ratio range, each single frame size with 14 ratios from 5:1 to 200:1.

6. Using high quality bearing prolongs the use life.

7. High-performance oil seal prevents the lubricant from leaking back to the inner of motor.

8. Three-phase motor combined the standard and full-enclosed aluminum motor, which is good in waterproof, easy in heat dissipation, high in running efficiency.

9. Modular combination extends the transmission ratio from i=5:1 to 1400:1.





Specification & Performance Reference Valuesor Gear Reducer Motor

3-PHASE

1-PHASE

PH

HZ

V

A

R.M.P

PH

HZ

V

A

R.M.P

0.1KW

50/60

220/380

1.0/0.6

1350/1650

0.1KW

50/60

110/220

3.0/1.5

1350/1650

0.2KW

50/60

220/380

1.2/0.8

1350/1650

0.2KW

50/60

110/220

3.6/1.8

1350/1650

0.4KW

50/60

220/380

2.1/1.3

1380/1680

0.4KW

50/60

110/220

7.6/3.8

1380/1680

0.75KW

50/60

220/380

2.5/2.3

1400/1700

0.75KW

50/60

110/220

12./6

1400/1700

1.5KW

50/60

220/380

6/3.7

1410/1720

1.5KW

50/60

110/220

20./10

1410/1720

2.2KW

50/60

220/380

9./6

1410/1720











3.7KW

50/60

220/380

14./8

1420/1730
