Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: H8500(12V/24V)
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12,000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Winch Application: Warehouse, Building, Wharf, Ect.
Capacity: 8500lb Surface: Painting, Chorme
Standard: GS/CE Type: Electric
High Light:

portable atv winch

,

winches for atv

Product Description

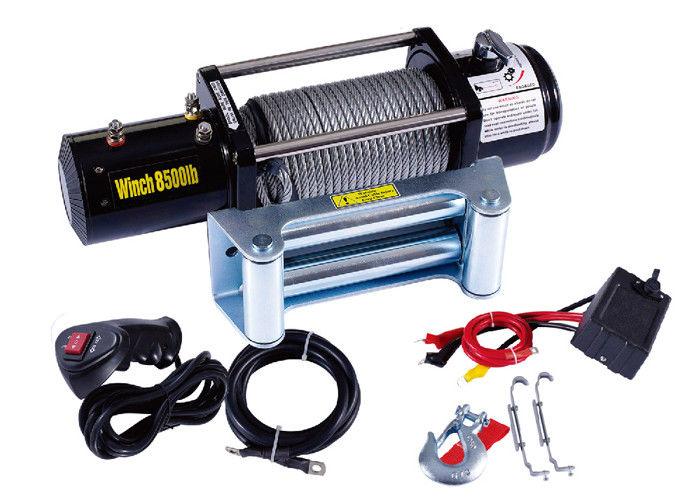

8500lb Electric ATV Winch

Features an all-metal planetary geartrain plus mechanical and dynamic braking. Frees pooling clutch with ergonomic control. Has sealed solenoids for all-weather protection. Sealed handlebar switch and 10-ft. remote. Includes roller fairlead and mounting plate.



Advantages



* Capacity from 0.5T-30T.

* Wheels lubricated and equipped with bearings for long life.

* More thickness of the steel plates and strong shaft to ensure the good safety.

* The static test is 4times of capacity, and running test is 1.5times of capacity one by one

* One year warranty



Technical Parameters



Model H8500(12V/24V)
Rated line pull 8500lb(3856kg) single line
Motor 4.0KW/5.5HP 12V,Permanent magnet
Control Remote switch,12ft(3.7m) lead
Gear train 3 Stage Planetary
Gear reductions ratio 195.8:1
Clutch Sliding Ring Gear
Braking Action Two-way,Automatic In-The-Drum
Drum Dimensions Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable (Dia X L) Φ5/16"x94'(Φ8.1mmx28m)
Fairlead 4-Way Roller Fairlead
Wireless Remote control Optional
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(1.83m)
Overall dimensions 21.1"x6.3"x8.6"(537x160x218mm)
Mounting Bolt Pattern 254mmx114.3mm
N.W. /G.W. N.W/G.W:35kg/37kg

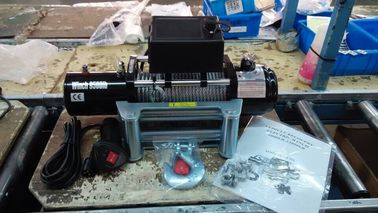

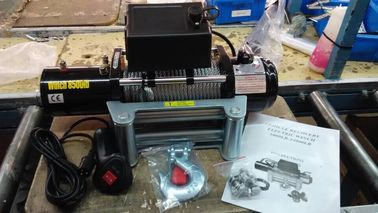

Packing
