Coal Mine Axial Blower Fan With MA Far Distance Ventilation High Power and Low Noise

Coal Mine Axial Blower Fan With MA Far Distance Ventilation High Power and Low Noise

  • Coal Mine Axial Blower Fan With MA Far Distance Ventilation High Power and Low Noise
Coal Mine Axial Blower Fan With MA Far Distance Ventilation High Power and Low Noise
Product Details:
Place of Origin: China Shandong
Brand Name: China Coal
Certification: CE, SGS, TUV, BV, ISO, MA
Model Number: YBF2-90L-2 Axial Blower
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Standard Export Packaging
Delivery Time: Shipped in three days after payment
Payment Terms: TT, Paypal, Western Union
Supply Ability: 5000
Contact Now
Detailed Product Description
Model: YBF2-90L-2 Axial Blower Power kW: 2×2.2
Pressure( V): 380/660 DC current (A): 4.85/2.79
Air capacitm3/min: 136~89 Pressure (Pa): 256~2050
Highest efficiency(%): ≥75 A sound Level(dB): ≤30
High Light:

ventilation fans

,

ventilating fan

Axial Blower ​ Introduction

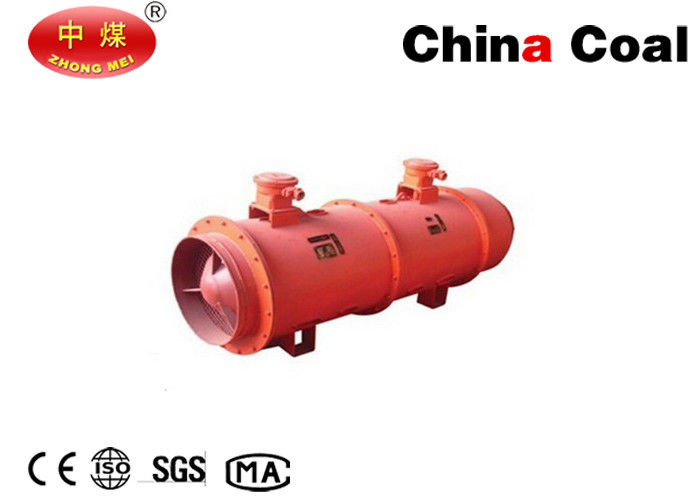

FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine

· Application:  Best choise ventilation fan for under mining coal, deep tunnel/  metal mining/ engineering tunnel

· Function:  far distance ventilation,  big power ventilation, low noisy, high efficiency, energy-saving,  various style available

· Temperatuer range:-20°C~+40°C


FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine  Feature:

1. The product is composed of explosion-proof motor, vanes, air duct and others;

2. It's in low noise, low consumption and perfect performance;

3. Besides being used for ventilation and exhausting, it also can be installed in series to improve the pressure in pipe;

4. The enclosure material can be armor plate or fiber flass reinforced plastic;

5. Wiring with cable.

Main Parameter

FBD Coal Mine Axial Blower Fan With MA far distance ventilation,  big power ventilation, low noisy,

high efficiency

NO.

Rotater

/min

Motor model

Power kW

Pressure( V)

DC current (A)

Air capacity

m3/min

Pressure

 (Pa)

Highest

efficiency(%)

A sound

 Level(dB)

4.0

2900

YBF2-90L-2

2×2.2

380/660

4.85/2.79

136~89

256~2050

≥75

≤30





YBF2-100L-2

2×3

380/660

6.4/3.7

150~100

325~2500

≥75

≤30





YBF2-112M-2

2×4

380/660

8.1/4.7

165~109

375~3040

≥75

≤30

5.0

2900

YBF2-112M-2

2×4

380/660

8.1/4.7

217~145

275~2060

≥75

≤30





YBF2-132S1-2

2×5.5

380/660/1140

11.1/6.4/3.7

240~161

325~2540

≥75

≤30





YBF2-132S2-2

2×7.5

380/660/1140

14.8/8.66/4.97

266~178

400~3155

≥75

≤30

5.6

2900

YBF2-132S2-2

2×7.5

380/660/1140

14.8/8.66/4.97

286~188

275~2850

≥80

≤25





YBF2-160M1-2

2×11

380/660/1140

21.6/12.6/7.2

324~215

375~3690

≥80

≤25





YBF2-160M2-2

2×15

380/660/1140

28.8/17.0/9.6

400~236

1107~4500

≥80

≤25

6.3

2900

YBF2-160M2-2

2×15

380/660/1140

28.8/17.0/9.6

410~237

400~4775

≥80

≤25





YBF2-160L-2

2×18.5

380/660/1140

35.5/20.5/11.8

442~256

460~5475

≥80

≤25





YBF2-180M-2

2×22

380/660/1140

41.0/24.4/13.67

468~274

525~6125

≥80

≤25





YBF2-200L1-2

2×30

380/660/1140

56.9/32.9/18.5

518~318

640~7310

≥80

≤25

7.1

2900

YBF2-200L1-2

2×30

380/660/1140

56.9/32.9/18.5

608~352

523~6228

≥80

≤25





YBF2-200L2-2

2×37

380/660/1140

67.9/40.3/22.6

650~350

608~7100

≥80

≤25





YBF2-225M-2

2×45

380/660/1140

82.1/48.4/27.4

696~402

686~8161

≥80

≤25

8..2

2900

YBF2-225M-2

2×45

380/660/1140

82.1/48.4/27.4

817~473

605~7200

≥80

≤25





YBF2-250M-2

2×55

380/660/1140

102.6/59.3/34.3

874~506

692~8230

≥80

≤25

8.2

2900

YBF2-280S-2

2×75

380/660/1140

56.8/77/44.5

960~540

750~8600

≥80



FBD Coal Mine Axial Blower Fan With MA far distance ventilation,  big power ventilation, low noisy, high efficiency
