| Place of Origin: | China Shandong |
| Brand Name: | China Coal |
| Certification: | CE, SGS, TUV, BV, ISO, MA |
| Model Number: | 3A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Standard Export Packaging |
| Delivery Time: | Shipped in three days after payment |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 5000 |
| No: | 3A | Rotation Speed (r/min): | 2900 |
|---|---|---|---|
| Power (Kw): | 1.5 | Volume Flow (m/h): | 1588-3049 |
| Total Pressure (Pa): | 1142-176 | ||
| High Light: | ventilation fans,ventilating fan |
||

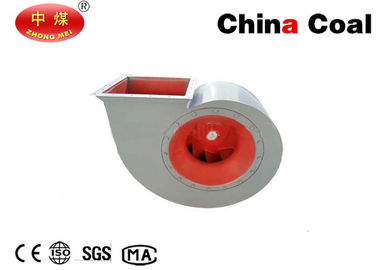

Exhaust Ventilator T4 72 Series Centrifugal Fans Air Blower Fan
Exhaust blower; exhaust ventilator; air blower fan,Exhaust Fan Blower
Product Introduction
The T4-72 series centrifugal fans can convey air and other non-hydergolic gas which are not harmful
to the human body and will not corrode steel and iron materials. The adhesive materials are not allowed
in the gas. Its containing dust and hard particles should not exceed 150mg/m, gas temperature not exceed
80C. It is applicable for the indoor ventilation and air exchange to the common factories and architectures.
It can be used either as input or output gas.
Main Parameter
|
No. |
Rotation Speed (r/min) |
Power (Kw) |
Volume Flow (m/h) |
Total Pressure (Pa) |
|
3A |
2900 |
1.5 |
1588-3049 |
1142-176 |
|
|
1450 |
0.75 |
794-1524 |
285-179 |
|
3.5A |
2900 |
3.0 |
2522-4841 |
1556-976 |
|
|
1450 |
1.1 |
1261-2421 |
388-243 |
|
4A |
2900 |
5.5 |
3764-7226 |
2036-1275 |
|
|
1450 |
1.1 |
1882-3613 |
506-318 |
|
4.5A |
2900 |
7.5 |
5360-10288 |
2582-1616 |
|
|
1450 |
1.1 |
2680-5144 |
641-402 |
|
5A |
2900 |
11 |
7352-8318 |
3195-3145 |
|
|
2900 |
15 |
9284-14113 |
3067-1998 |
|
|
1450 |
2.2 |
3676-7057 |
792-497 |
|
6A |
1450 |
4.0 |
6352-12194 |
1142-716 |
|
|
960 |
1.5 |
4206-8073 |
499-313 |

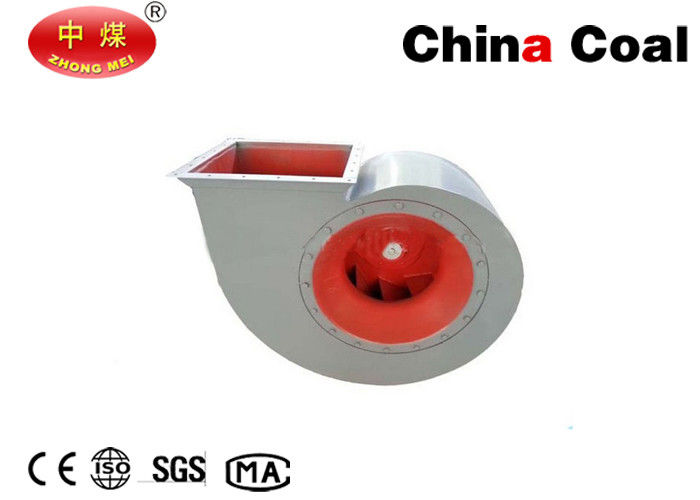

Feature Photo
