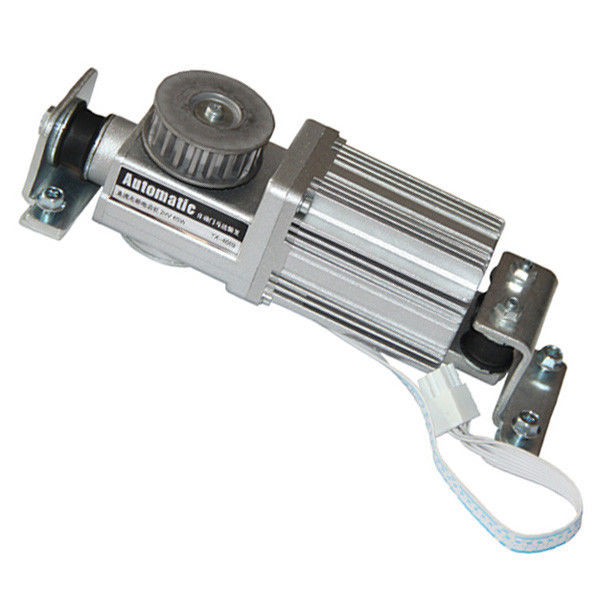

BLDC Brushless DC Automatic Sliding Door Motor , Electric Roller Shutter Door Motor High RPM 24VDC 60W

BLDC Brushless DC Automatic Sliding Door Motor , Electric Roller Shutter Door Motor High RPM 24VDC 60W

BLDC Brushless DC Automatic Sliding Door Motor , Electric Roller Shutter Door Motor High RPM 24VDC 60W

Product Details:

Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4009-C3
Phase: Single-phase
Power: 60W
Speed(RPM): 2500RPM
Voltage: DC24V
Contact Now
Detailed Product Description

BLDC Brushless DC Automatic Sliding Door Motor , Electric Roller Shutter Door Motor High RPM 24VDC 60W



Quick Detail:



Brushless dc motor used for Automatic Sliding Door system, electric roller shutter door motor,24VDC 60W,3000RPM





Description:



1.Basic specification:DC24V,60W,2500RPM S1,B CLASS,IP20,IP40

2.Rated torque of bare motor:318mN.m,229mNm

3.No-load noise of whole motor:<50dB,L=50cm

4.VE:AC66V,1S,5mA

5.Insulation resistance:>20MΩ 500V,>20MΩ 500V

6.Life:2500H,4000H

7.Ambient request:RoHs

8.Gear Ratio:8.5,12.5,13





Specifications:



  • Certification: CCC, CE, RoHS, UL
  • Function: Control
  • Structure: Asynchronous Motor
  • Phase: Single-phase
  • Power: DC
  • Usage: Door
  • Protect Feature: IP40
  • Speed: 3000rpm
  • Shape: Square



Mode

Voltage

Power

No-load Parameters

Load Parameters

Allowable Torque Gear Motor

Motor Weight



V



W

Speed

r/min

Current

A

Speed

r/min

Torque mN.m

Current A

GK8.5

mN.m

GK13

mN.m

Kg

4009-1

24

60

2300

0.4Max

1800

318

4.0

1840

2650

1.2

4009-2

90

60

2300

0.3Max

1800

318

1.1

1840

2650

1.0

4009-3

24

60

3000

0.6Max

2500

229

4.0

1320

2000

1.2

4009-4

24

60

3000

0.6Max

2500

229

4.0

GX12.5/1950

1.0





Applications:



Widely used in interior automatic sliding door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance

This is the most popular style of automatic sliding door motor that most of the world-wide end users are choosing
