Place of Origin: | China |
Brand Name: | Nide |
Certification: | None |
Model Number: | ND-S2PA |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 50 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 set per year |
Machine Size: | Middle Size | After-Sales Service: | Overseas Service Center Available |
---|---|---|---|
Certificate: | CCC | Condition: | New |
Application: | Winding Stator Coil | Stator O.D Range: | 50-150mm |
Data Set: | Touch Screen | Weight: | 1200KG |
High Light: | stator coil winding machine,motor stator winding machine |
Automatic Double Flyer Stator Winder / Electric Motor Winding Equipment
Applications:
This type of automatic stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor, vacuum cleaner motor etc.
Quick Detail:
Description:
Automatic Stator Winding Machine Double Working Stations Double Flyers
This stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor, vacuum cleaner motor etc. It can wind two stators at same time. It's self-locked, quick and convenient. Winding parameter can be set and saved through the touch screen.
Specifications :
Item |
Specification |
Wire diameter |
0.15-1.3mm |
Stator O.D range |
50-150mm |
Stack length |
10-70mm |
Pole no. |
2 poles |
Turn number |
0-9999 |
Spindle speed |
0-450 rpm |
Motor power |
4.5KW |
Air supply pressure |
5-7 Kg/cm2 |
Voltage |
Three phase AC380V50/60Hz |
Weight |
1200Kg |
Dimension |
1050(length)X2300(width)X1750(height)mm |
Operation procedure of this machine
Fix the winding tools on stator core, then put stator core on the loading base, press START button, safety door will close, loading base will move inside to the winding position, machine will automatic winding and cut wire, at this time, operator could fix the winding tools on another two stator cores; after finishing winding, loading base will move outside, safety door opened, then take out the completed stator, and put another two stator cores on the loading base, one cycle is completed.
Competitive advantages:
Easy operation, high automation. PLC and touch screen control, double working stations.

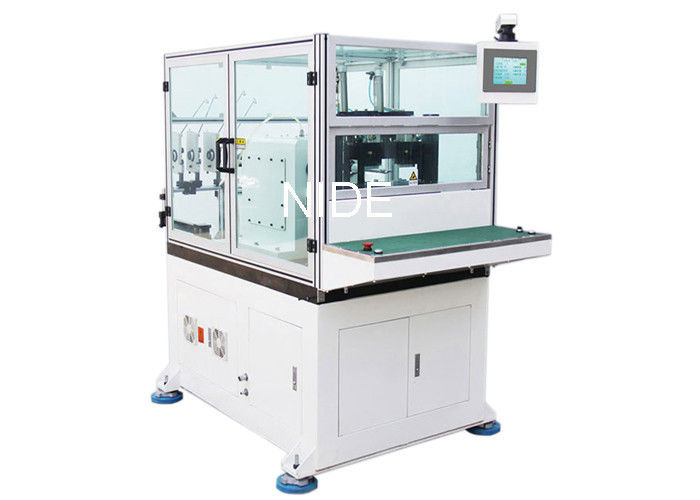

Automatic double flyer stator winding machine picture:
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
Customerized service | 1. Customized product design and manufacturing |
2. Customized tranning | |
3.Technical suggestions | |
After-sales service | 1. Warranty Period: 12 month usually |
2. Overseas service center available | |
3. Engineers available to service overseas |
NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
FAQ
1. How to confirm which motor stator winding machine model?
Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.
If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.
2. How to transport the stator winding machine?
By air or sea
3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?
Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.
4. How long has your company been in the field of motor manufacturing?
NIDE is a company devoted in electric motors manufacturing solutions, providing one-stop service for our customers.
5. What field is your machine suitable for?
Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
Contact Person: Mrs. Du
Tel: 1598930822
Fax: 86-755-3697709
