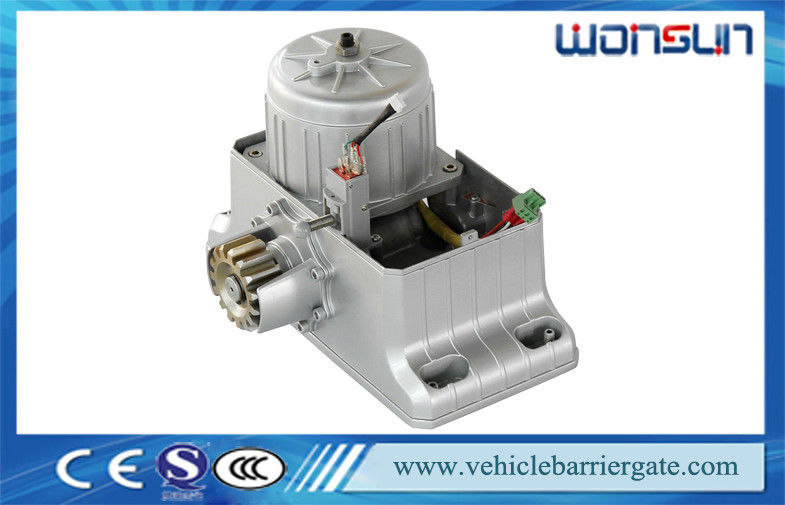

Electric Sliding Gate Motor Automatic Warm - Up With Mode Number 4

Electric Sliding Gate Motor Automatic Warm - Up With Mode Number 4

Quick Detail:

Name: Sliding gate motor

Power supply range: AC220V/110V±10%  50/60Hz

Net weight: 8.5kg

Working temperature of motor: -25 to +55 Celsius degree

Working humidity: ≤85%

Rated power: 200w

Output gear module: M=4

Output gear number: Z=16

Open(close) speed: v=12m/min

Each kit includes:

• 1 x motor
• 2 x remote controllers
• 1 x control panel
• 1 x base plate
• 2 x magnets
• 1 x user's manual

Functions of sliding gate operators:

1) Integrated mechanical and electrical, all functions on one controller

2) Radio controller or lines to control open, close and stop functions

3) Magnetic limit switch, the door stops when it moves to the limit

4) Accurate limit braking

5) Electronic soft-start

6) Dialing switches to adjust the motor rotation in both directions

7) Open and close limits have a self-locking function

8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open, then after 10seconds it attempts to close automatically unless you press the stop keystroke

9) Movement indication - the indicator lights up when the door is moving

10) Optional line control or remote control

Sliding gate motor description:

• Single phase
• Speed up to 600mm per second
• Manual override release clutch
• Basic features means easy to set up
• Soft starting and stopping function
• All electric enclosed in a protective enclosure
• 100% duty cycle

Others information of sliding gate opener:

• Guarantee time: 1 year
• Delivery deadline: 8 days delivery after receive your payment
• Package: 1 set in a standard carton packing
• Minimum order
