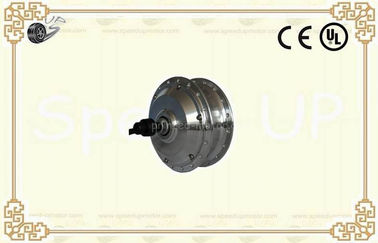

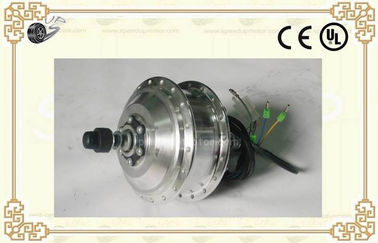

250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive

250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive

  • 250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive
  • 250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive
250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive
Product Details:
Place of Origin: Jiangsu, China
Brand Name: SPEED UP , OEM
Certification: CE、UL
Model Number: BS01
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Cartons
Delivery Time: 15working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: BS01 Front & Rear Drive Rated Power: 150-250W
Rated Voltage: 24V-36V Rated Speed: 150-320(rpm)
Type: Brushless High-speed Planetary Gear Reducer Motor Custom Mad: YES
High Light:

electric motors for bicycles

,

electric bicycle wheel hub motor

250W Electric Bicycle Brushless DC Hub Motor , Gear Brushless Motor For Spoke wheel , Front and Rear Drive



Quick Detail:

  • Brushless high-speed planetary gear reducer motor for electric bicycle (ebike)
  • Small size
  • Light weight
  • High starting torque
  • Small power consumption
  • Form long

  • Long mileage

Description:



Brushless DC motor includes a motor main body and a driver, is a typical electromechanical integration products. Composed of a permanent magnet rotor, stator winding, multi position sensor.

Characteristics of Brushless DC motor is a brushless, adopts the semiconductor switching devices (such as the Holzer components) to achieve the electronic commutation, namely electronic switching device used in place of the traditional contact commutator and brush. It has the advantages of high reliability, non commutation spark, mechanical noise etc.

And the wheel hub motor technology also known motor technology for wheel, its greatest feature is the power device, a transmission device and a braking device are integrated together to the hub, to the mechanical part of the electric vehicle is simplified



Applications:



Used for electric bike with spoke wheel



Specifications:

 Product types:

 Brushless DC HUB motor

 Model:

 BS01

 Rated power:

 150-250W

 Rated voltage:

 24-36V

 Rated speed

 150-320RPM

 Custom made:

 Yes

 Diameter:

 143mm

 Thickness:

 89mm(Rear drive)  78mm(Front drive)

 Install type:

 36 hole

 Axis leigth:

 210mm(Rear drive)  155mm(Front drive)

 Suit ebike:

 12’-28’

 Disc size:

 160mm-180mm

 Motor open size:

 135mm(Rear drive)   95mm(Front drive)

 Spoke hole distance

 129mm

 Motor weight:

 2.8kg



Competitive Advantage:



A: has the advantages of small size, high power, light weight, simple structure

B: shock resistance, low noise, smooth operation, long service life

C: startup performance, no hysteresis damping energy consumption, strong climbing ability

D: high efficiency, small current, integrated energy-saving 20%

E: good reliability, high stability, good waterproof, easy maintenance

250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive 0250W E Bike Brushless DC Hub Motor For Spoke Wheel By Front or Rear Drive 1
