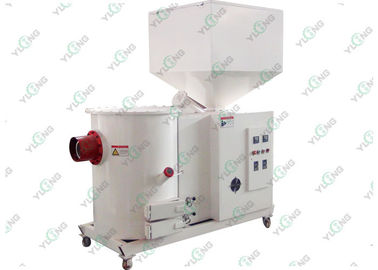

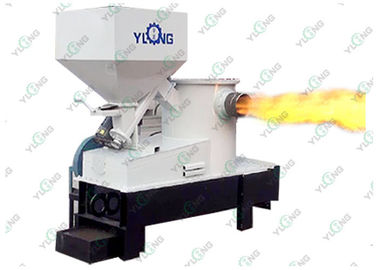

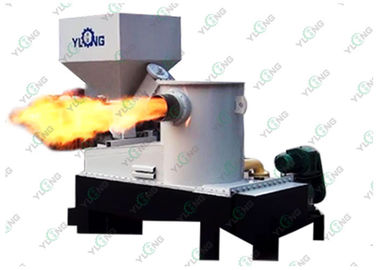

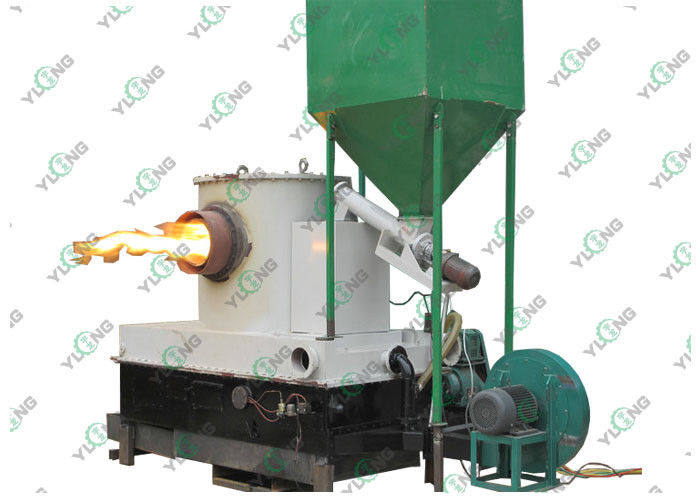

Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal

Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal

  • Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal
  • Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal
  • Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal
  • Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal
Automatic Biomass Pellet Burner , Biomass Wood Burner 48,000,000Kcal
Product Details:
Place of Origin: China
Brand Name: YULONG
Certification: CE/SGS/ISO
Model Number: YLR
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Iron Steel Box
Delivery Time: 7-15 working days after received your payment
Payment Terms: L/C/T/T or western Union
Supply Ability: 300sets per month
Contact Now
Detailed Product Description
Product Name: Pellet Burners Application: Various Industries
Suit: Wood Pellet Straw Pellet,rice Husk Pellet Power: 11kw
Type: Wood Pellet Burner Weight: 2900kg
High Light:

wood burning machine

,

industrial wood burner

48,000,000Kcal Energy-saving biomass wood pellet fired burner



Description:



Our biomass pellet burner adopts the most mature combustion technology and semi-gasification

compound combustion technology, it has the features of reasonable structure, automatic feeder, fully

combustion rate, high thermal efficiency, pollution-free, low- emission, compact structure, easy for

installation, small occupied area, low operation cost, etc., which can replace other fuel fired burner.Pellet Burners is the equipment of changing forest waste, scraps into high quality fuel gas, no harmful emission,

 protects the limited fossil resources, use the renewable energy enough, in line with the world, especially

 the energy conservation and emission reduction national conditions of our developing country.



Main Features:



Energy efficient and high efficiency

Clean combustion technology and low-carbon environmental protection

Simple operation and convenient maintenance

Compact structure and attractive appearance.

Low fuel consumption.

Low power consumption.

Low heat losses.



Automatic PLC control system



Unique man-machine conversation function, large size intelligent touch screen, this system include:

Automatic ventilation feature for combustion chamber;

Automatic feeding system;

Automatic ignition system;

Ignition micro blow-in procedure;

Blow-in and induced air joint procedure;

Strong and soft fire self-regulation procedure;

Safe operation interlocking protection procedure;

Halt protection procedure;

Various alarm procedures.





Specifications:



Model

Heat value

 (Kcal/h)

Power

( Mw)

Burn fuel

(KG/h)

Blower power

(Kw)

YLR-60Q

600,000

0.7

145

1.1

YLR-100Q

1,000,000

1.1

240

2.2

YLR-200Q

2,000,000

2.3

480

5.5

YLR-360Q

3,600,000

4.2

860

7.5

YLR-480Q

4,800,000

5.6

1150

7.5



Applications:



The application range of the biomass pellet burner:Large chickens, ducks, large cattle, pig farm, the

large grain drying plant, all kinds of food drying, large tobacco drying plant, all kinds of large and medium

sized workshops, greenhouse heating heating, etc; steam boiler, hot water boilers, industrial furnaces,

incinerator, melt stove, kitchen equipment, drying equipment, food drying equipment, ironing equipment,

 painting equipment, road building machinery and equipment, industrial annealing furnace, asphalt

heating equipment, die casting machine, etc.



Competitive Advantage:



High Heating Efficiency , Easy Operating , Convenient maintenance,

Save Energy, Save cost,Easy Fire Starting—stable and Reliable,Long Lifetime,

Automatic feeding, automatic discharging,automatic igniting, automatic control temperature ,automatic

24 working hours without unattended substation
