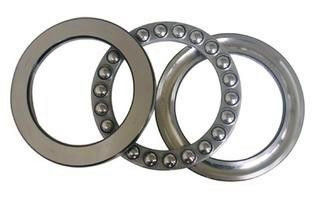

C3 C4 High precision Thrust Ball 51305 Bearing for motor / car / auto

C3 C4 High precision Thrust Ball 51305 Bearing for motor / car / auto

  • C3 C4 High precision Thrust Ball 51305 Bearing for motor / car / auto
  • C3 C4 High precision Thrust Ball 51305 Bearing for motor / car / auto
C3 C4 High precision Thrust Ball 51305 Bearing for motor / car / auto
Product Details:
Place of Origin: CHINA
Certification: ISO9001、 OEM
Model Number: 51305
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Poly bag + box into Carton + Plywood Case
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description
High Light:

precision ball bearings

,

high speed Ball Bearing



C3 C4 High precision Thrust Ball 51305 Bearing for motor / car / auto



Quick Detail:



High precision  Thrust Ball Bearing 51305 with  Chrome steel for motor

Structure:  Thrust

Seals Type:  Open

Number of Row:  Single Row

Precision Rating:  P0,P2,P4,P6

Material:  stainless steel,chrome steel

Clearance:  C0,C2,C3,C4 as your required

Virbration Level:  V1,V2,V3,V4 as yor required

Noise rank: Z1,Z2,Z3,Z4

Place of Origin: China (Mainland)

OEM:  Accept

Certificate:  ISO9001:2008

---------------------------------







Description:





1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.



2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.

New Model

Old Model

ID
(mm)

OD
(mm)

Width
(mm)

Cr
(kN)

Cor
(kN)

Grease Speed
(r/min)

Oil Speed
(r/min)

Weight
(kg)

51305

8305

25

52

18

35.7

61.4

3100

4800

0.180






Specifications





a) Professional bearing manufacturer,

b) Competitive price and good quality

c) Low friction and noise

d) Long life

e) Utility Model Patent

f) Good after-sale services







Features:





1.        Available in two designs: single direction and double direction.

2.        To accommodate initial misalignments in an assembly both designs are available with spherical

           aligning seats or aligning seat washers.

3.        High quality steel-ultra clean steel to extend bearing life by up to 80%.

4.        Advanced Grease Technology – which can extend grease life and performance.

5.        High Grade Balls - Quiet and smooth operation even at high speed.

6.        Optional seating rings take initial misalignment.





Application:





Motor, Machinery, Electric Tools, Sports Apparatus, office equipment , Scooter Aluminum windows , shower blocks, hanging round, closet wheel, toys, etc

Fan, car, truck, tractors and automatic machine, Textile machine, Pump, Agricultural machinery, Machine tool, window ,sliding door , other furniture and some toys.





Parameters:



51100 series

51100 51101 51102 51103 51104 51105 51106 51107 51108 51109 51110 51111 51112 51113 51114 51115 51116 51117 51118 51119 51120 51122 51124 51126 51128 51130 51132 51134 51136 51138 51140 51144 51148 51152 51159 51160 51164 51168 51172 51180 51184 51188 51192 51196

51200 series

51200 51201 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211 51212 51213 51214 51215 51216 51217 51218 51220 51222 51224 51226 51228 51230 51232 51234 51236 51238 51240 51244 51248 51252 51256 51260 51264 51268 51272 51280 51292



53201 series



53201 53202 53203 53204 53205 53206 53207 53208 53209 53210 53211 53212 53213 53214 53215 53216 53217 53218 53220 53222 53224



52201

series



52201 52202 52203 52204 52205 52206 52207 52208 52209 52210 52211 52212 52213 52214 52215 52216 52217 52218 52220 52224 52228 52232 52236 52238 52240 52244





51304 series

51304 51305 51306 51307 51308 51309 51310 51311 51312 51313 51314 51315 51316 51317 51318 51320 51322 51324 51326 51328 51330 51332 51334 51336 51338 51340 51348 51368



52305 series



52305 52306 52307 52308 52309 52310 52311 52312 52313 52314 52315 52316 52320 52322 52324 52330 52336



53306 series



53306 53307 53308 53309 53310 53311 53312 53313 53314 53315 53316 53320 53322 53324 53330



51405 series



51405 51406 51407 51408 51409 51410 51411 51412 51413 51414 51415 51416 51417 51418 51420 51422 51426 51428 51430



As a professional bearing products supplier with many years experiences, we could offer many kinds of good quality bearings. We are open to all sincere buyers, for further information, welcome to make inquiry, thank you for taking time to read our information!
