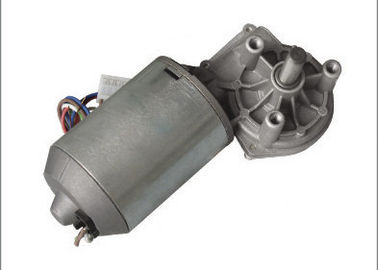

Galvanized casing 30Nm High Torque Automatic Sliding Door DC Gear Motor For Lifting Garage Door

Galvanized casing 30Nm High Torque Automatic Sliding Door DC Gear Motor For Lifting Garage Door

  • Galvanized casing 30Nm High Torque Automatic Sliding Door DC Gear Motor For Lifting Garage Door
Galvanized casing 30Nm High Torque Automatic Sliding Door DC Gear Motor For Lifting Garage Door
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-02100-C1
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: standard export carton, CTN size:55*31*H30cm 50pcs/CTN G.W.:20Kgs
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
On-load Speed: 40±5rpm, ≤4.0A Unload Speed: 50±5rpm, ≤0.7A
Motor Housing: D63mm Power: 50W
Voltage: 24VDC
High Light:

garage door motors

,

roller door motors



Galvanized casing 30Nm High Torque Automatic Sliding Door DC Gear Motor For Lifting Garage Door Silent Working





Quick Detail:



DC gear motor for lifting garage door 50W, 24VDC,30Nm,high torque,silent working,long life time





Description:



Permanent Magnet Brushed DC motor,Worm gear reduction type

Gear material: Plastic Dupont 100P or Bronze

Aluminum Diecasting Gearbox

Motor housing: D63mm, Zincification available

Stretching Housing Construction

Hall sensor available

Output Shaft: Dia 8mm,Flat

can be done according customer’s design





Specifications:



  • HS code: 8501310000
  • Voltage: 24VDC
  • Power: 50W
  • Unload speed: 50±5rpm, ≤0.7A
  • On-load speed: 40±5rpm, ≤4.0A
  • Full load torque: ≥10Nm
  • Stall torque: 30Nm
  • Rotate direction: CW and CCW
  • Protection class: IP 44









Applications:



For lifting automatic garage door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25℃ to + 40℃

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
