Poultry cooling pad with exhaust fan/ventilation equipment
Product Details:
Place of Origin: NORTH HUSBANDRY
Brand Name: Evaporative Cooling Pad
Certification: Poultry Cooling Pad
Model Number: Poultry Cooling Pad
Payment & Shipping Terms:
Minimum Order Quantity: 60cbm
Price: 14$
Packaging Details: Carton
Delivery Time: Within 30 days after receiving the payment
Payment Terms: T/T
Supply Ability: 500CBM/DAY
Contact Now
Detailed Product Description

Poultry cooling pad with exhaust fan/ventilation equipment

Evaporative cooling pad for Super Exhaust Fan,

Large Airflow Exhaust Fan, 54' ' Poultry House Ventilating Fan

Poultry cooling pad with exhaust fan/ventilation equipment 0

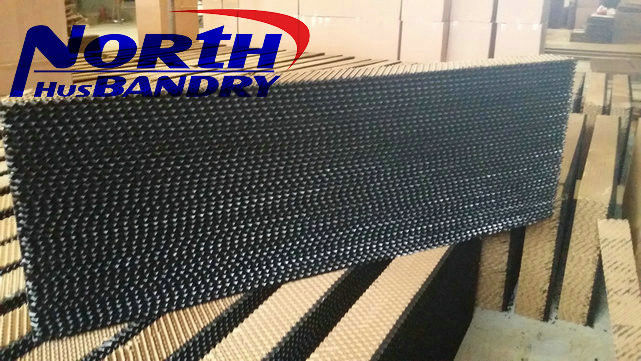

1. Evaporative Cooling Pad For Poultry Farm

(2. Exhaust Fan For Evaporative Cooling Pad System)

1)7090 Evaporative cooling pad, Use the new material and the space crossing linking technology, high absorbability, high water-resistant, anti-mildew and long service life.

Evaporative Cooling Pad,Cooling Pad,Poultry Equipment,Poultry fan,Greenhouse Fan,poultry farm

Poultry cooling pad with exhaust fan/ventilation equipment 1

2)7090 Evaporative cooling pad, Large evaporative area, cooling efficiency as high as 80%

3)Evaporative cooling pad, The product contains surface active agent, natural water absorbability, fast pervasion speed, lasting effectiveness. A drop of water can diffuse in 4-5 seconds.Height of absorb:60-70mm/5 minutes, 200mm/1.5 hours ,can achieve international standard.

Evaporative Cooling Pad,Cooling Pad,Poultry Equipment,Poultry fan,Greenhouse Fan,poultry farm

4)Evaporative cooling pad, The products don't contain phenol which easy to skin allergy and other chemical substances, when installed non-toxic harmless to human body, safety, energy saving, environment protection and economic applicable

Evaporative Cooling Pad,Cooling Pad,Poultry Equipment,Poultry fan,Greenhouse Fan,poultry farm

5)Evaporative cooling pad, Variety color:Brown,Green,Green/Brown colour,Black coated-single side(washable),Green coated-single side (washable),Yellow coated-single side (washable) ,Variety color:Brown,Green,Green/Brown colour,Black coated-single side(washable),Green coated-single side (washable),Yellow coated-single side (washable)

Evaporative Cooling Pad,Cooling Pad,Poultry Equipment,Poultry fan,Greenhouse Fan,poultry farm

6)Evaporative cooling pad, Strict production as per standard, width of 600mm cooling pad involves 85 sheets; raw material adopt imported kraft paper(105GSM, thickeness:0.18-0.20mm, tension resistance at 70N, absorbability height as 45mm/10min , moisture at 5-8%, humidity at 18N)

1-PVC  Water Pipe

Poultry cooling pad with exhaust fan/ventilation equipment 2

2- Aluminum Magnesium Alloy Frame

Poultry cooling pad with exhaust fan/ventilation equipment 3

Poultry cooling pad with exhaust fan/ventilation equipment 4

Poultry cooling pad with exhaust fan/ventilation equipment 5Poultry cooling pad with exhaust fan/ventilation equipment 6

Poultry cooling pad with exhaust fan/ventilation equipment 7

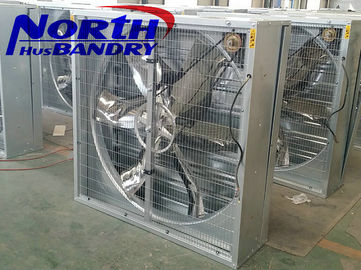

2. Exhaust Fan For Evaporative Cooling Pad System

(1. Evaporative Cooling Pad For Poultry Farm)

1. We have three models to be choose: 1380x1380x450mm and 1000x1000x450mm

Model Diameter Blades Blades rotational speed Motor  rotational speed Air flow Total pressure Noise decibels Import power Rated voltage High Widh Thick
Fan-39'' 910 mm 438 rpm 1400 rpm 21000 57 <=65 550 380 1000 1000 450
Fan-54'' 1250 mm 437 rpm 1400 rpm 44000 57 <=65 1100 380 1380 1380 450



DSCFAAC (462).jpg

Blade: 3 types of material for choose: stainless steel/aluminum/galvanized sheet. Adopting a punch forming technology.

Frame: adopting advanced automatic manufacturing process, made of thick galvanized sheet.

Shutter: made of hot galvanized sheet with thickness 1.0 and 1.2mm, to increase the quality and the stability while working.

Motor: both China high quality motor and Siemens motor are available. Aproved by CCC certificate, protecting level: IP55, insulation level: F class.

20140420_113410.jpg 20140722_125942.jpg
V-Belt: imported from Japan and Korea. Resistance to abrasion, without deformation.

Centrifugal system: adopting high-class nylon mixed with amount of fiber glass. All parts are connected by rivets. This system will be assure to open the shutter with 90 degree when the fan working.
Fan belt pulley and flange: made of high aluminum-magnesium alloy by die-casting. Light weight, low vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.



Examples of Application

wifi0s0-7405371431393595256792.jpeg wifi0s04430982631393595240631.jpeg
