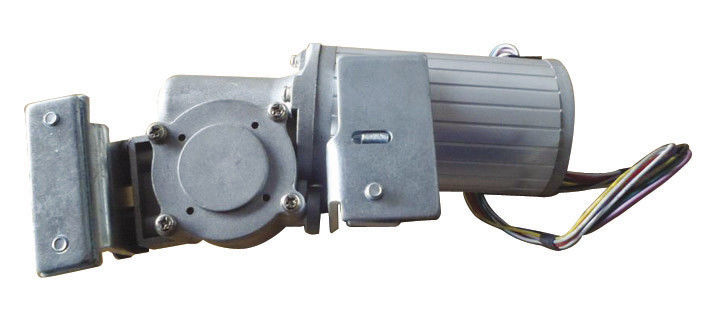

Silent Working High RPM BLDC Brushless DC Automatic Sliding Door Motor Worm Gear Box Type

Silent Working High RPM BLDC Brushless DC Automatic Sliding Door Motor Worm Gear Box Type

  • Silent Working High RPM BLDC Brushless DC Automatic Sliding Door Motor Worm Gear Box Type
Silent Working High RPM BLDC Brushless DC Automatic Sliding Door Motor Worm Gear Box Type
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4008-C6
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: standard export carton, CTN size:55*31*H30cm 50pcs/CTN G.W.:20Kgs
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Protection Class: IP 44 Life Time: 3million Cycles,10years
Rotate Direction: CW And CCW Commutation: Brushless
Power: 65w Speed(RPM): 4200RPM
High Light:

garage door motors

,

sliding door motor

Silent Working High RPM BLDC Brushless DC Automatic Sliding Door Motor Worm Gear Box Type





Quick Detail:



Brushless Automatic Sliding Door Motor, Long Lifetime and Noise-free 24VDC 65W,4200RPM





Description:



Permanent Magnet Brushless DC motor, worm gear box type

Gear material: Strengthened Plastic or Bronze

Aluminum Diecasting Gearbox

Motor housing: D60.5mm, Black coating

Rolled Steel Housing Construction

Encoder available

Various Output Shaft extension

Metal or Plastic pulley available





Specifications:



  • Voltage: 24VDC
  • Power: 65W
  •  speed: 4200rpm
  • Gear Ratio: 1:15
  • Rotate direction: CW and CCW
  • Protection class: IP 44
  • Life time:3million cycles,10years





Applications:



Widely used in interior automatic sliding door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
