Detailed Product Description
Materail Thickness: 1.5mm-3.5mm Working Speed: 12-15m/min
Forming Station: About 17 Stations Main Power: 20kw
Type: C Z Purlin Roll Forming Machine Electrical Control System: Panasonic PLC
High Light:

c z purlin roll forming machine

,

c purlin roll forming machine





Slide Guide Moving Linear Guider Roll Forming Machine For C Z Purlins





C Z Purlin Roll Forming Machine Working Flow


 Decoiler, Feeding ,Guiding And Levelling, Hydraulic Punching, Main Roll Forming, Cutting, Collect products





Composition of C Z Purlin Roll Forming machine





 C Z Roll Forming Machine production line can produce many kinds of CZ purlins by the quick interchange just need 15 minutes to turn the rollers at 180 degrees, then you can produce C Z Purlins.



  The whole production line include : Decoiler, Feeding and levelling mill, Pre-punching , pre-cutting, Main roll forming machine, Collect C Z Purlins





Components of the C Z machine:



1.  Decoiler------------1 set
2.  Roll forming main machine---------1 set
3.  PLC Control System---------1 set
4.  Hydraulic station--------1 set
5.  Pre-cutting device-------1 set
6.  Pre-punching device-------1 set
7. Safety cover device---------1 set
8.  Out Put table-------1 set





Profile Drawing Of CZ Purlin





Slide Guide Moving Linear Guider Roll Forming Machine For C Z Purlins 0





C Z Roll Forming Machine Technical Parameters





1. Decoiler Type: Optional manual /hydraulic/ automatic
2. Decoiler Inner Diameter : 510mm-610mm
3. Decoiler Outer Diameter: Max 1300mm
4. Material Thickness : 1.5mm-3.5mm
5. Working speed : 12-15m/min
6. Number of Roller Stations:  about 17 stations
7. Driven motion : motor
8. Roller material : GCR15 steel with heat treatment
9. Shaft diameter  : 80mm
10. Shaft material : High grade 45# steel
11. Main Motor Power : 20kw
12. Cutting power  : 3kw
13. Hydraulic pressure : 20Mpa
14. Cutting length tolerance  : +/-1.5mm(per 3m)
15. Cutting dies material : GCr12 with quenched treatmentHR58-62
16. Power of oil pump : 3kw
17. Oil of Hydraulic station  : 40# carbon
18. Control system  : PLC frequency control system with touch screen
19. PLC brand  : Japan panasonic
20. Encoder brand  : Ombrand
21. Coil material Yield strength  : G250Mpa-G350Mpa
22. Transducer  : Panasonic
23. Raw material  : GI. Carbon steel
24. Transmission : Gear boxes







 C Z Purlin Roll Forming Machine Competitive Features



1. Technical   Support We can provide any technical support for any customers during the warranty
2. High Quality We carefully choose the best material for every part of the equipmen
3. Rich experience Professional engineers have more than 15 years' experience in designing rollers and Roof tile manufacturing mills
4. Stable and safe Machine structure is very stable ,when machine running it is very safe
5. Easy to Operate The control system is PLC frequency control system with Touch screen, you can easy to asjust the cutting length, quantity, holes size by the control system
6. Adanced Technology Engineers adopted the advanced European technology and craft to design machines
7. Certifications Machines have passed CE,ISO certifications
8. Variable Profiles 1 machine can manufactur many kinds of products by changing or adjusting the rollers and spacers

9. High accurate Length cutting tolerance is +/-1.5mm(per) it can guarantee the produts produced by the machine are very beautiful







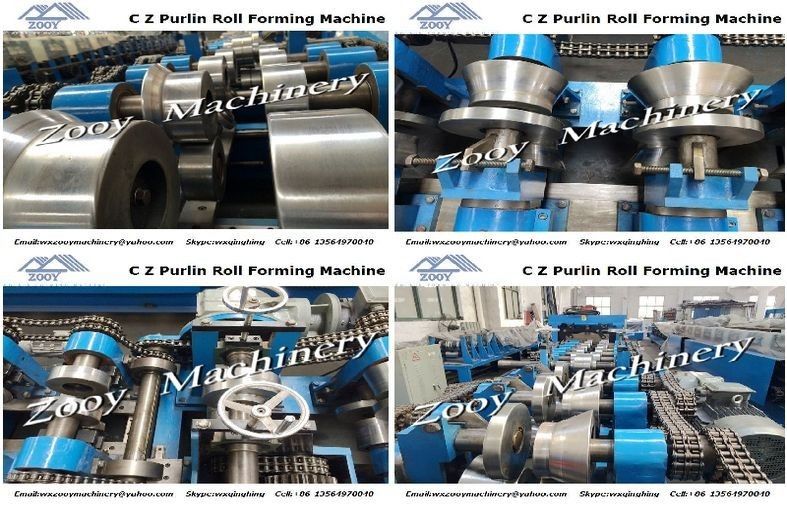

C Z Roll Forming Machine Picture


Slide Guide Moving Linear Guider Roll Forming Machine For C Z Purlins 1




   C Z Production speed can reach to 20m/min. High production effiency and beautiful appearance.


   Quick  Interchangeable C Z  Purlin Roll Forming machine adopts a special structure. The rollers for C Z are changed very quickly without dismantle any parts. One machine can produce all specifications of C Z purlins. Crimples are optional to increase rigidity of purlin. And the PLC can control and adjust any size in automatic

   Slide Guide Moving Linear Guider Roll Forming Machine For C Z Purlins 2




Other Parts of C Z Roll Forming Machin





Slide Guide Moving Linear Guider Roll Forming Machine For C Z Purlins 3
