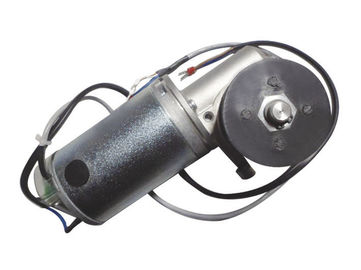

The signal line with Pulley Automatic Sliding Door Motor 60W and 100W 24VDC Interior Permanent Magnet Brushed DC Motor

The signal line with Pulley Automatic Sliding Door Motor 60W and 100W 24VDC Interior Permanent Magnet Brushed DC Motor

  • The signal line with Pulley Automatic Sliding Door Motor 60W and 100W 24VDC Interior Permanent Magnet Brushed DC Motor
The signal line with Pulley Automatic Sliding Door Motor 60W and 100W 24VDC Interior Permanent Magnet Brushed DC Motor
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4002-C4
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: standard export carton, CTN size:55*31*H30cm 50pcs/CTN G.W.:20Kgs
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
On-load Speed: 210rpm (2.5A) Unload Speed: 245rpm (0.7A)
Life Time: 3million Cycles,10years Rotate Direction: CW And CCW
Power: 60W/100W Voltage: 24V
High Light:

garage door motors

,

sliding door motor

60W / 100W 24VDC Interior Automatic Sliding Door Motor , Permanent Magnet Brushed DC Motor



Quick Detail:



Interior Automatic Sliding Door Motor, Long Lifespan and Noise-free 24VDC 60W/100W





Description:



Permanent Magnet Brushed DC motor, worm gear box

Gear material: Plastic Dupont 100P

Aluminum Diecasting Gearbox

Motor housing: D63.5mm, Black coating

Rolled Steel Housing Construction

Encoder available, 20/40/100 pulse available

Various Output Shaft design

Metal or Plastic pulley available





Specifications:



  • HS code: 8501310000
  • Voltage: 24V
  • Power: 60W/100W
  • Unload speed: 245rpm (0.7A)
  • On-load speed: 210rpm (2.5A)
  • Stall torque: 12Nm (16A)
  • Rotate direction: CW and CCW
  • Protection class: IP 44





Applications:



Widely used in interior automatic sliding door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25℃to + 60℃

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
