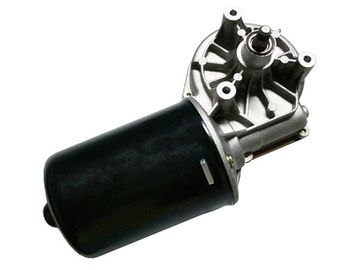

87mm 24Volt Industrial DC Gear Motor High Torque 45Nm , 25rpm 0.5A ,35W , CW And CCW

87mm 24Volt Industrial DC Gear Motor High Torque 45Nm , 25rpm 0.5A ,35W , CW And CCW

  • 87mm 24Volt Industrial DC Gear Motor High Torque 45Nm , 25rpm 0.5A ,35W , CW And CCW
87mm 24Volt Industrial DC Gear Motor High Torque 45Nm , 25rpm 0.5A ,35W , CW And CCW
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-051-E1
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet, Net weight 1.5kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Protection Class: IP 44 Rotate Direction: CW And CCW
Voltage: 6V,12V,24V,32V Dia: 36mm
Torque: 27,36,45,54Kgf-cm
High Light:

dc planetary gear motor

,

small gear motors



87mm 24Volt Industrial PMDC Motor High Torque 45Nm , 25rpm 0.5A ,35W , CW And CCW



Quick Detail:



High torque dc motor, gear motor,Dia 87mm 24VDC,35W Torque 45Nm





Description:



Aluminum die-cast gearbox

Black coating: available

Rolled steel housing construction

Built-in EMC components

Various output shaft extension





Specifications:



  • Voltage: 24VDC
  • Power: 35W
  • High speed: 25rpm, 0.5A
  • Low speed: 20rpm, 2.1A
  • Stall torque: 45Nm 9A
  • Rotate direction: CW and CCW
  • Protection class: IP 44





Applications:



Widely used in industrial automation machinary.





Competitive Advantage:



High torque,Silent working, Low noise, Easy installment, Reliable performance
