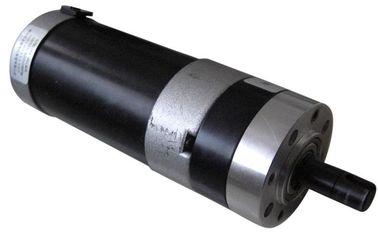

NEMA 23 planetary geared motors with high - gauge steel housing

Product Details:

Place of Origin:	China
Brand Name:	Sherry Motors
Certification:	TS16949/RoHS
Model Number:	57BL-PAG

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 51.00-59.00 per unit
Packaging Details:	Carton or negotiation
Delivery Time:	45 working days after received your payment
Payment Terms:	negotiation, T/T
Supply Ability:	60,000pcs/month

Contact Now

Detailed Product Description

High Light:

planetary gear motor

spur gear motor

NEMA 23 planetary geared motors with high - gauge steel housing

4-pole and 3 phase windings in Wye configuration.
12VDC or 24VDC as the nominal voltage.
Well-known trademarks of rare earth magnets to improve the motor performances.
Without any brushes to keep a longer servicing life while eliminating the rating of maintenance.
A planetary gearhead, with 3 stages of gear reduction, is involved into to greatly increase the torque.

Applications:

Our bldc motor, with a planetary gearbox, is an ideal solution to the applications such as the pumps, material handling machines and textile machines.

Specifications:

Model	No. of Pole	No. of Phase	Rated Voltage (VDC)	Rated Speed (RPM)	Rated Torque (N.m)	Rated Current (Amps)	Putout Power (Watts)	Motor Body Length L1(mm)	Weight (Kg)
57BL01PAG	4	3	24	3000	0.057	1.5	18	41.5	0.43
57BL02PAG	4	3	24	3000	0.11	2.5	34	46.5	0.5
57BL03PAG	4	3	24	3000	0.165	3.2	52	56.5	0.67
57BL04PAG	4	3	24	3000	0.22	4.5	69	66.5	0.75
57BL05PAG	4	3	24	3000	0.33	6.7	103	86.5	1
57BL06PAG	4	3	24	3000	0.44	8.8	138	103.5	1.25
