| Place of Origin: | CHINA(WUXI) |
| Brand Name: | ZOOY |
| Certification: | CE |
| Model Number: | ZO-PDS |
| Minimum Order Quantity: | 1Set |
|---|---|
| Packaging Details: | Standard packing usually according to the actual situation |
| Delivery Time: | 60days after get 30% down payment |
| Materail Thickness: | 1.5mm-3.5mm | Working Speed: | 12-15m/min |
|---|---|---|---|
| Forming Station: | About 17 Stations | Main Power: | 20kw |
| Type: | C Z Purlin Roll Forming Machine | Electrical Control System: | Panasonic PLC |
| High Light: | c z purlin roll forming machine,c purlin roll forming machine |
||
Slide Guide Moving Linear Guider Roll Forming Machine For C Z Purlins
C Z Purlin Roll Forming Machine Working Flow
Decoiler, Feeding ,Guiding And Levelling, Hydraulic Punching, Main Roll Forming, Cutting, Collect products
Composition of C Z Purlin Roll Forming machine
|
C Z Roll Forming Machine production line can produce many kinds of CZ purlins by the quick interchange just need 15 minutes to turn the rollers at 180 degrees, then you can produce C Z Purlins.
The whole production line include : Decoiler, Feeding and levelling mill, Pre-punching , pre-cutting, Main roll forming machine, Collect C Z Purlins
|
Components of the C Z machine:
| 1. | Decoiler------------1 set |
| 2. | Roll forming main machine---------1 set |
| 3. | PLC Control System---------1 set |
| 4. | Hydraulic station--------1 set |
| 5. | Pre-cutting device-------1 set |
| 6. | Pre-punching device-------1 set |
| 7. | Safety cover device---------1 set |
| 8. | Out Put table-------1 set |
Profile Drawing Of CZ Purlin
C Z Roll Forming Machine Technical Parameters
| 1. Decoiler Type: Optional manual /hydraulic/ automatic |
| 2. Decoiler Inner Diameter : 510mm-610mm |
| 3. Decoiler Outer Diameter: Max 1300mm |
| 4. Material Thickness : 1.5mm-3.5mm |
| 5. Working speed : 12-15m/min |
| 6. Number of Roller Stations: about 17 stations |
| 7. Driven motion : motor |
| 8. Roller material : GCR15 steel with heat treatment |
| 9. Shaft diameter : 80mm |
| 10. Shaft material : High grade 45# steel |
| 11. Main Motor Power : 20kw |
| 12. Cutting power : 3kw |
| 13. Hydraulic pressure : 20Mpa |
| 14. Cutting length tolerance : +/-1.5mm(per 3m) |
| 15. Cutting dies material : GCr12 with quenched treatmentHR58-62 |
| 16. Power of oil pump : 3kw |
| 17. Oil of Hydraulic station : 40# carbon |
| 18. Control system : PLC frequency control system with touch screen |
| 19. PLC brand : Japan panasonic |
| 20. Encoder brand : Ombrand |
| 21. Coil material Yield strength : G250Mpa-G350Mpa |
| 22. Transducer : Panasonic |
| 23. Raw material : GI. Carbon steel |
| 24. Transmission : Gear boxes |
C Z Purlin Roll Forming Machine Competitive Features
| 1. Technical Support | We can provide any technical support for any customers during the warranty |
| 2. High Quality | We carefully choose the best material for every part of the equipmen |
| 3. Rich experience | Professional engineers have more than 15 years' experience in designing rollers and Roof tile manufacturing mills |
| 4. Stable and safe | Machine structure is very stable ,when machine running it is very safe |
| 5. Easy to Operate | The control system is PLC frequency control system with Touch screen, you can easy to asjust the cutting length, quantity, holes size by the control system |
| 6. Adanced Technology | Engineers adopted the advanced European technology and craft to design machines |
| 7. Certifications | Machines have passed CE,ISO certifications |
| 8. Variable Profiles | 1 machine can manufactur many kinds of products by changing or adjusting the rollers and spacers |
| 9. High accurate | Length cutting tolerance is +/-1.5mm(per) it can guarantee the produts produced by the machine are very beautiful |

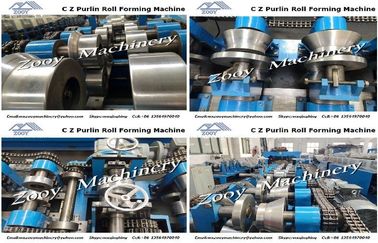

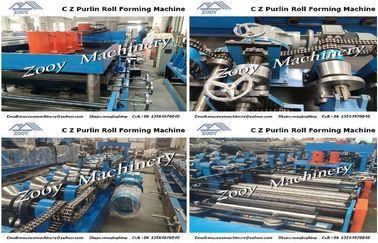

C Z Roll Forming Machine Picture
|
C Z Production speed can reach to 20m/min. High production effiency and beautiful appearance.
|
Other Parts of C Z Roll Forming Machin
Payment Terms
| Procuments Aspects | Detailed Rules |
|---|---|
| Payment Terms |
The payment shall be made by L/C or T/T(30% down payment and the balance for 70% shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up to the contracted requirements |
| Delivery Time |
30-65 working days after the receipt of the payment |
| Packing |
Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads in one container.Depends on the machine's size and weight |
| Warranty | 1 year warranty from the date of shippment |
We also produce other Roll forming machines as follow:
