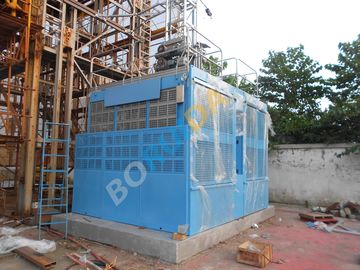

Double Cage Hoists Frequency Rack And Pinion Material Hoisting Equipment CH3200

Double Cage Hoists Frequency Rack And Pinion Material Hoisting Equipment CH3200

    • Double Cage Hoists Frequency Rack And Pinion Material Hoisting Equipment CH3200
  • Double Cage Hoists Frequency Rack And Pinion Material Hoisting Equipment CH3200

    Product Details:

    Place of Origin: China
    Brand Name: Boruida
    Certification: CE
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Pack in container
    Delivery Time: 30-45 working days
    Payment Terms: T/T before shipment, LC at sight
    Supply Ability: 40pcs a month
    Contact Now
    Detailed Product Description
    High Light:

    rack and pinion lift

    ,

    material handling hoist



    Frequency Rack And Pinion Hoists CH 3200 Double Cars 3200kg Capacity



    Quick Detail:



    Name

    Other Name

    Brand Name

    Control

    Rack and pinion hoists

    Rack and pinion hoists CH 1600/1600

    BORUIDA

    DOL and FC

    Loading Capacity

    1600kg/1600kg

    Certificate

    CE




    Description:

    Rack and pinion hoists CH 1600/1600 is installed and dismounted conveniently and can grow as high as the building grows height.The Rack and pinion hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
    It is efficient and safety vertical transporting equipment


    Applications:

    SC serialization of products Rack and pinion hoists is a Rack and Pinion EL. Rack and pinion hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.


    Specifications





    Standard technical datas of  double cars:



    Parameter

    CH1000/1000

    CH1600/1600

    CH2000/2000

    CH2700/2700

    CH3200/3200

    Rated
    loading capacity
    (kg)

    1000/1000

    1600/1600

    2000/2000

    2700/2700

    3200/3200

    Rated lifting speed
    (m/min)

    0~40

    0~40

    0~60

    0~60

    0~60

    Rated passenger number

    12/12

    18/18

    24/24

    30/30

    38/38

    Max. lifting height(m)

    150

    250

    450

    450

    450

    Engine power(kW)

    2*2*9.5

    2*2*11

    2*2*13

    2*3*18.5

    2*3*22

    Car inner dimension
    (L*W*H)(m)

    3*1.3*2.5

    3*1.4*2.5

    3*1.5*2.5

    3.2*1.5*2.5

    3.6*1.6*2.5

    Car weight (kg)

    1400

    1500

    1800

    1950

    2050

    Mast section weight
    (kg)

    145

    145

    163

    163

    163

    Mast section dimension (mm)

    650*650*1508

    650*650*1508

    650*650*1508

    650*650*1508

    650*650*1508

    Safety device type

     SAJ30-1.2

    SAJ40-1.2

    SAJ40-1.4

    SAJ40-1.4

    SAJ50-2.0

    Hanger rated lifting capacity
    (kg)

    250

    250

    250

    250

    250

    Rack module

    8

    8

    8

    8

    8





    CH series rack and pinion hoists:



    1). Car load capacity: 1000kg~3200kg;

    2). Lifting speed:33m/min, 0~40m/min;0~60m/min;

    3). Increased lifting height on request;

    4). Mast section: Painted or hot dipped zinc

    5). Car:double car

    6). Recommended car inner dimensions (L*W*H): 3*1.3*2.5m, 3*1.4*2.5m, 3*1.5*2.5m, 3.2*1.5*2.5m, 3.6*1.5*2.5m, according to requirements of customers;

    7). Motor and reducing device: Made in China, or uses SEW according to requirements

    8). Color of car: Yellow, red, blue or your request

    9). Car load capacity: 1, 000kg, 1, 600kg, 2, 000kg, 2, 700kg or 3, 200kg

    10). including VFD or without VFD.





    Competitive Advantage:



    1). Compact design and comfortable operation environment

    2). Proven helical gearbox as an option

    3). Single and double car configurations

    4). Design without countweight

    5). Multiple choices of doors

    6). Simple and easy operation system

    7). Recessed control panel

    8). PLC control as an option

    9). Dorable materials:high quality steel for increased strength and weight reduction,hot dip

    10). galvanized mast section and tie-in

    11). Wide range of tie-in

    12). Wide range of optional equipment and functions
