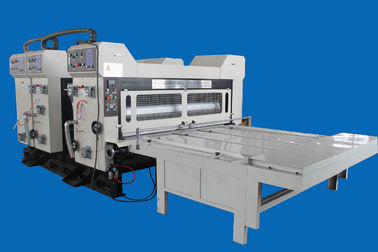

Creasing Motorized Flexo Printing Slotting Machine 11kw , Pneumatic Locking

Creasing Motorized Flexo Printing Slotting Machine 11kw , Pneumatic Locking

Creasing Motorized Flexo Printing Slotting Machine 11kw , Pneumatic Locking

Product Details:

Place of Origin: HeBei Province,China
Brand Name: XINTIAN, SINCERITY
Certification: CE,ISO9001
Model Number: XT-L-800

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negociated
Packaging Details: pallet
Delivery Time: 30-60days
Payment Terms: T/T or L/C
Supply Ability: 30SET/MONTH
Contact Now
Detailed Product Description
Automatic Grade: Automatic Dimension(L*W*H): 6000×4200×2500
Driven Type: Motorized Power: 11Kw
Production Speed: 50Pieces/min Weight: 15T
Roller: Ink Roller And Printing Pressing Roller Material: Chrome
Surface: Grinded Feeding System: Chain Feeding

Creasing Motorized Flexo Printing Slotting Machine 11kw , Pneumatic locking


 Packaging Type: Pallet
Driven Type: Electric
Automatic Grade: Semi automatic
Voltage:380V 50HZ
Power:18KW
Application: To make all kinds of corrugated carton box



Functions and Features:

1. Chain feeding model can ensure that the bent board paper be smoothly sent due to the elastic pressing
plate at the front of feeding system.

2. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink
distribution and pneumatic brake separation orientation.

3. Printing and slotting phase is adjusted by planetary-gear electric phase, shown by digit.

4. Whole machine uses the gear pumping automatic lubrication.

5. Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.

6. All axles and rollers are plated with rigid chrome and grinded surface.

7. The whole machine adopts the electric parts from CHINT and DELIXI; Whole machine bearing is from the
Harbine Bearing Group.

8. Option of printing slitting and creasing or printing slotting.


Main Technical Parameter


SERIAL

WYAZS NAME

UNIT

WYAZS

2500×2800

1

Inboard width

Mm

3200

2

Max.coverage size

Mm

2500×3100

3

Min.coverage size

Mm

600×500

4

Max.printing area

Mm2

2450×2800

5

Thickness of printing plate

Mm

6

6

Max.speed

Pieces/min

50

7

Power of main motor

Kw

11

8

Size for whole machine

Mm

6000×4200×2500

9

weight

T

15
