Place of Origin: | Ningbo |
Brand Name: | FLY,OEM |
Certification: | CE |
Model Number: | DC75 |
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | USD 280-350 |
Packaging Details: | plastic bag,carton |
Delivery Time: | 3 days after receiving customer's payment |
Payment Terms: | T/T, Wester Union |
Supply Ability: | 5000 PCS per month |
High Light: | automatic garage door parts,automatic door parts |
---|

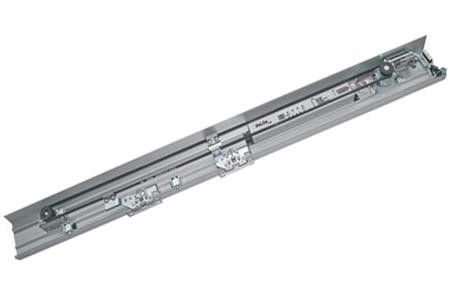

50/60HZ Automatic Sliding Door Parts Operator Microcomputer Manage and Control Device
(1)Intelligence: The sliding operator is controlled by micro computer chips. It is easy to install and use. Users just need to select a set open time or close time , the door can keep working very well.
Safety: The sliding operator can work with security sensor which can prevent people from nipping, so it is safe for users. With inner unique electric lock, the operator can lock the door without mechanical locks. We also can provide emergency power when power fails; it can let the door open in urgent situations.
(2)Reliability: Thanks to professional mechanic design and high-efficiency DC brushless motor, the sliding operator can work very well with low noise for a long time. With the help of advanced synchronous belt and perfect design of power supply circuit, the door moves very stably.
(3)Environmental: To maintain the overall environment of power, the quiet condition for the new concept of beam structure design, and new material apply, will not cause resonance transmission, therefore, more light running noises made milder.
(4)Energy Saving: With the help of semi-open function, the sliding operator can automatically set the width of the entrance, so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well.
(5)Purification of: Using double interlock, can reduce indoor purify air escaping, prevent cross contamination, satisfy requirement, good sealing of sound insulation effect.
(6)Convenience: Open and closed timely, sensitive and quick, people need to begin, energy, light. Simple, fast loading
TECHNICAL SPECIFICATION:
Door Model |
Single Leaf |
Double Leafs |
Weight Door |
≤100kg |
≤100kg×2 |
Door Width |
700~1300mm |
600~1250mm |
Control Device |
Microcomputer Manage and Control Device |
|
Motor |
DC 24V 55W Motor Without Brush |
|
Opening Speed |
15~50cm/Sec(Adjustable) |
15~45cm/Sec(Adjustable) |
Closing Speed |
10~45cm/Sec(Adjustable) |
10~43cm/Sec(Adjustable) |
Open Door Pause Time |
Adjustable within 0.5~8Sec |
|
Manual Push Force |
Maximum 4.5kg |
|
Power and Voltage |
AC200~250V 50/60HZ |
|
Working Temperature |
-20+50°C |
|
Optional Parts |
Interlock, Punch the Card, Electric Lock |
Contact Person: Mrs. Du
Tel: 1598930822
Fax: 86-755-3697709
