Place of Origin: | China |
Brand Name: | Inline Mixed flow duct fan |
Certification: | CE, CCC, RoHS, IP44 |
Model Number: | 125(5”) |
High Light: | silent inline duct fan,inline exhaust fans |
---|

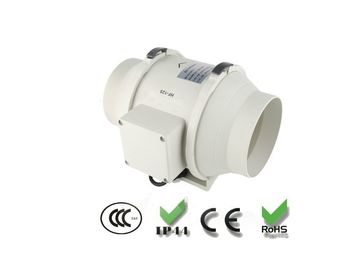

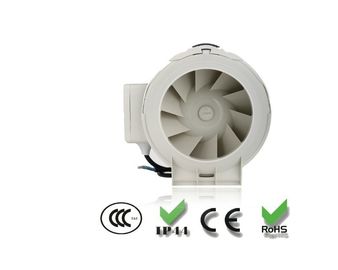

5" AC circular inline duct booster fan for hydroponics and greenhouse ventilation
Quick Detail :
Name |
Inline duct booster fan |
Brand Name |
OEM offered |
Duct Size |
5"(125mm) |
Frequency |
50-60HZ |
Voltage |
110-380VAC |
Air flow |
132CFM |
Speed |
2520RPM |
Certificate |
UL, CE, RoHS, IP44, CCC |
Application :
Mixed flow fan can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow and low noise levels. With a range of sizes that include 100, 125, 150 and 200mm. This fan can be used with rigid and flexible ducting. The mixed flow fan is the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms, greenhouse, hydroponics systems and kitchens, as well as ventilation for apartments, houses, shops, cafes, restaurants, cinemas etc.
Design :
The motor is attached to the body of the fan by two quick release clips which enable the motor to rotate to provide connection for confined spaces and removal for maintenance without removing the whole fan or ducting. All models have an option of standard which has a two speed motor or overrun timer option variable range of 1 to 30 minutes.
Motor :
The single phase ball bearing motor has two speeds and is equipped with standard thermal overload protection (STOP) with automatic restart. Motor protection rating IP44 and are fully speed controllable. Complies with part F building regulations and designed for ambient temperatures up to 60℃ and low to -20℃, supply voltage 110V-380V, 50/60HZ.
Mounting :
The fan can be mounted in line at either end of the duct run and at any angle, horizontally or vertically. All fans can be mounted in parallel to increase the volume of air or in series to increase the pressure. The casing is fitted with a mounting plate. The mounting box can be rotated to be installed in any position for easy installation and connection.
Feature :
1. The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function
2. Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
3. Two-Speed motor, imported NMB ball bearing, its life expectancy up to 50000 hours
4. IP44 protection class, waterproof and dustproof more effective
5. Can be designed with a delay function, temperature sensors and humidity sensors,, more of user-friendly features design.
6. Run the ambient temperature range: -20℃-60℃
Benefits
1. Removable central cartridge for ease of cleaning and maintenance
2. Versatile and ease of installation
3. Can be mounted at any place on the air duct
4. 2Speed controllable
Specification :
Model |
125(5”) |
Voltage |
110-380Vac |
Frequency |
50/60HZ |
Current |
0.1185A |
Power |
35W |
Speed |
2520RPM |
Weight |
2kgs |
Air flow |
132CFM |
Max.0C |
60 |
Avg. dBA@ 3m |
31 |
Best Service :
1. All inquiry will get our prompt reply
2. Persist ant notice of production and shipment process
3. Customized logo printing and package are available here
4. Strict quality control and inspection before shipment
5. Normally ship out the order within 20-25days after order confirmation
Advantage :
1. The wind machine adopts the most advanced design, with large air volume, low noise, long service life, corrosion resistance and other characteristics.
2. We have a strong R & D and production team, according to customer requirements design and manufacture of specialized products.
3. We understand the various sectors of the fan’s specific needs, providing a variety of standard products for you to choose.
4. Our fans using high-quality bearings, enameled wire, high reliability.
5. We provide thoughtful and meticulous service, as well as the rapid and timely delivery.
6. Our goal: to do the best in the world the most advantage of the cooling fan manufacturers!
7. after sale service: 2 years free repair, replacement;
8. Inline duct fan features: the product of wind pressure, air volume, long life, low noise, stable in operation, and has passed UL, CE, CCC, and other security certification! Can be customized according to your request non-standard products. Can be provided in line with the ROHS standard products.
9. Can be design according to customer demand.
10. Every questions you can contact us: info@ghindustrial.com
