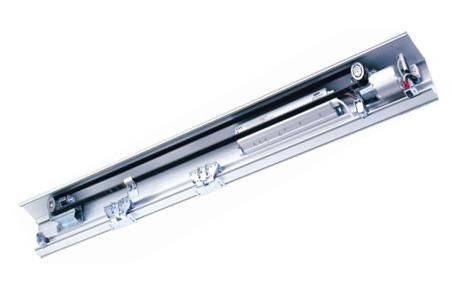

700~1300mm Single Leaf Automatic Sliding Door Parts Operator

700~1300mm Single Leaf Automatic Sliding Door Parts Operator

The mute motor driving with special device to make this a sliding door drive more advanced and reliable, safe, steady, quiet, and suitable for operating under the various environment .

Motor: the brushless DC motor with efficient, strong function, and small in size. Gear box uses worm gears with brush with efficient and low noise to reduce the speed.

controller: this part is accepted from the human testing signal of sensor. Driving motor and the moving of the control gate can apply to the power 220 volts. Don't use the transformer on the side.

Track: using high hardness aluminum, simply cut off. Various open width can be adjusted to make sure that it can be installed in the best size.

Belt: Using timing belt with flexibility of small  and high efficiency, so you need hardly due to the flexibility and make adjustments.

Hanger frame: this part is equipped with door sheave that can move on aluminum guide tail and can  load bearing large door of 150 kg weight .

pulleys:The belt  hangs on the tension wheel. This part is equipped with the institution of adjust the tensile force of the belt.

TECHNICAL SPECIFICATION:
