Product Details:
Place of Origin: Ningbo China
Brand Name: VEZE
Door Material: Aluminum Alloy
Open Style: Sliding
Surface Finishing: Finished
Position: Commercial
Type: Security Doors
Category: Other Access Control Products
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Wooden Carton
Delivery Time: 1-14days
Payment Terms: T/T, L/C, D/A, PayPal, Other
Supply Ability: 1000 Unit / Month
Contact Now
Detailed Product Description


Overall features and functions of automatic sliding doors:
(a)
Microprocessor intelligent control system with adjustable parameters, advanced mechanical configuration.
(b) Work at a wide range of power, low power consumption, energy-saving.
(a) Low noise drive unit, simple and convenient installation.
(c) Advanced brushless motor and worm gear reducer integration, high efficiency, great torque, no powder pollution, quick in speed up and down, long service life.
(d) Microwave motion detectors and safety beam protect the passengers from bumping the door, safe and reliable.
(e)Can install electromagnetic lock, make the system more safe and reliable.
(f)Can work excellently with fingerprint switch, remote control, push button, access keypad, safety sensor, digital wireless video, etc .
(g) Optional backup battery can ensure the normal operation in case of the power failure.
Technical specifications of automatic sliding doors:
Door style
Single-parting
Bi-parting
Door leaf width
600-1200mm
500-1100mm
Opening speed
100-500 mm/s(Adjustable)
100-500 mm/s(Adjustable)
Closing speed
100-500 mm/s(Adjustable)
100-500 mm/s(Adjustable)
             Creep speed 30-100 mm/s(Adjustable)
Motor
24V brushless DC motor
Hold open time
0-9second(Adjustable)
Safety feature
reverse upon an obstruction
Power supply
AC220V, 50Hz-60Hz
Operating Temperature
-20°C~50°C

Main components of automatic sliding doors:
Motor
1
Controller
1
Microwave motion sensor
2
Driven wheel / Idler pulley
1
Connector
1
Hangers
4
Link span(left)
1
Link span(right)
1
Stopper
2 (left/right)
Belt tensioner
1
Fastenings
1 set
Aluminium beam
2×2.1m
Glass clamp
1
Installation Manual & Warranty Card
1set

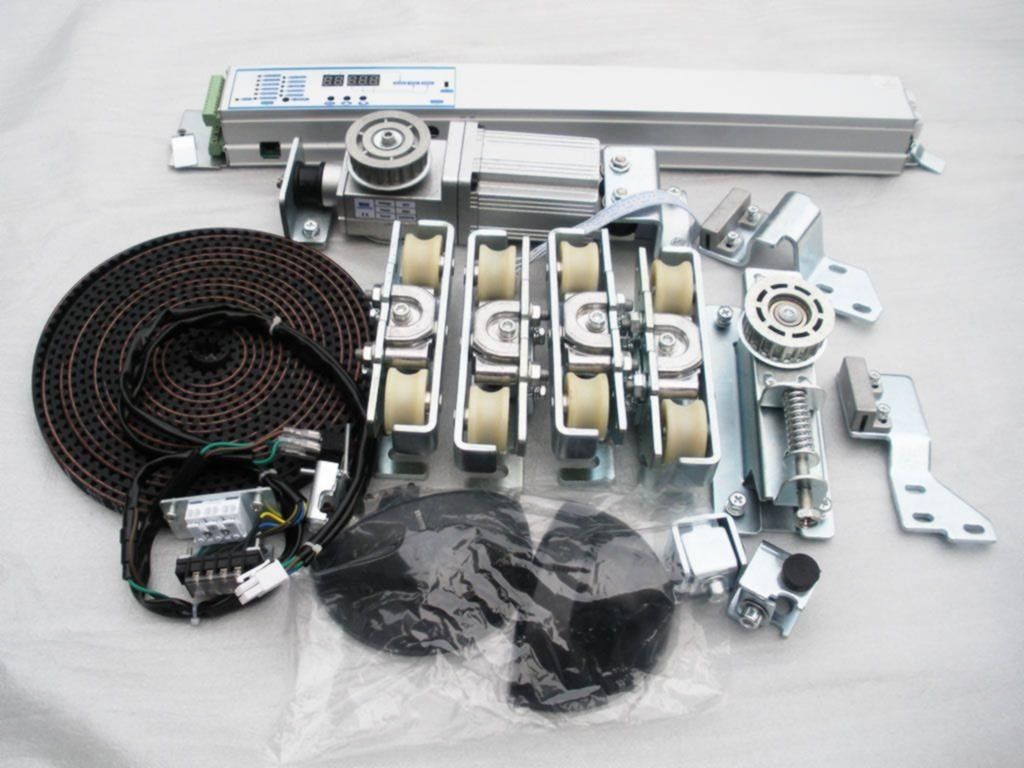

Picture of automatic sliding doors:


We are China automatic sliding doors manufacturer offer best Framless glass doors OEM, ODM,service.
