| Place of Origin: | China Shandong |
| Brand Name: | China Coal |
| Certification: | CE, SGS, TUV, BV, ISO, MA |
| Model Number: | PA3N250B24H |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Standard Export Packaging |
| Delivery Time: | Shipped in three days after payment |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 5000 |
| Model: | PA3N250B24H | Type: | Axial Flow Fan |
|---|---|---|---|
| Motor Type: | EC Brush Less External Rotor Motor | Insulation Class: | B |
| Protection Type: | IP44 | Standard: | LVD EMC |
| Operating Temperature: | -25~+60 | Weight: | 2.45kg |
| Blade Material:: | Stainless Steel | Air Volume:: | 1900 M³/H |
| High Light: | ventilation fans,ventilating fan |
||

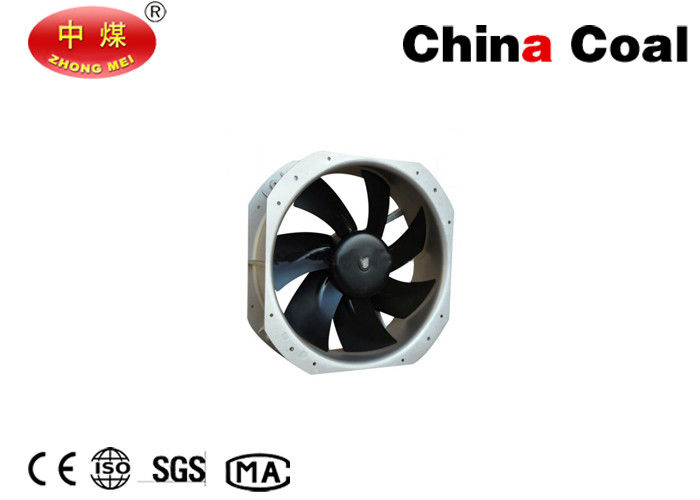

280x280x80mm China Axial Jet Fan
Keyword:fan,jet fan,axial jet fan
Technical Features:
|
Type: |
Axial Flow Fan |
|
Blade Material: |
Stainless Steel |
|
Model Number: |
PA3N250B24H |
|
Air Volume: |
1900 M³/H |
|
Motor Type: |
BE92DC |
|
Dimension: |
280*280*80mm |
|
Rated Current: |
4.4 A |
|
Electric Current Type: |
DC |
|
Frame Material: |
Aluminum Alloy |
|
Voltage: |
24 VDC |
|
Speed: |
2750 RPM |
|
Usage: |
Telecom Station, Heat Exchanger |
|
Fan Feature: |
0~10VDC/PWM Speed Control, Tach Output |
|
Air Pressure: |
220 PA |
|
Mounting: |
Free Standing |
|
Power: |
105W |
|
Certification: |
CE, ROHS |
|
Cooling Method: |
Direct Cooling |
Feature Photo
