| Place of Origin: | Guangdong China |
| Brand Name: | Caterly |
| Certification: | CE,ISO9001,SGS,CQC |
| Model Number: | F-150W |
| Minimum Order Quantity: | 10 Sets |
|---|---|
| Price: | USD 225/Set to USD500/Set |
| Packaging Details: | Bubble bag and cardboard boxes and wooden case |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 2000Set per month |
| Door Dody Material: | Glass And Aluminum Frame | Color: | Grey |
|---|---|---|---|
| Size Of Track: | 2m , 2.1m , 4m , 4.1m , 3.2m , 6M | Warranty: | 2 Years |
| Type: | Automatic Door Operators | Place Of Origin: | Guangdong , China (Mainland) |
| Surface Finishing: | Finished | ||
| High Light: | exterior sliding doors,automated sliding door |
||

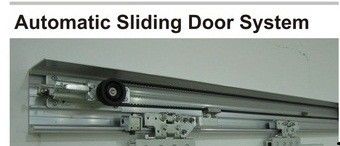

DC 24V Brushless Motor Aluminium Alloy Automatic Sliding Door Operator ultra-silence 2400mm
Standard Configuration
1. Motor device
2. Main controller
3. Power
4. Tension wheel device
5. Tooth device
6. Gear belt
7. Stopper
8. Aluminium track
9. Hanger device
Multiple optional access
Five bit program switch
Remote control handle
Electric lock
UPS battery
Safety photocell sensor
Access control system
Technical Specification
|
Rang of the Door |
Single-leaf |
Double-leaf |
|
Clear door opening |
900-2800mm |
900-2800mm |
|
Door leaf max weight |
150kg |
150kg x 2 |
|
Height of track rail |
125mm |
|
|
Width of track rail |
156mm |
|
|
Power Supply |
AC (AC220±10%), 50-60 Hz |
|
|
Opening Speed |
0.7m/s (adjustable) |
|
|
Closing Speed |
0.7m/s (adjustable) |
|
|
Power consumption |
70W |
|
|
Hold-open time |
0-9s (adjustable) |
|
|
Ambient temperature |
-20+50°C
|
|
|
Relative humidity(condensate) |
5%-85% |
|
|
Electric fuse |
6.3A
|
|
|
Accessorial voltage |
AC24V,640mA |
|
|
Power supply |
80VAC-15% - 260VAC+10% |
|
1 CE SGS Certificate
2 2 years warranty
3 Weight of door leaf:150kg(one leaf)
4 Power:80-250V Build-in Broadband voltage 50-60HZ
5 Ultra silent
| Packaging Details: | Foam+Carton+Bubble bag+Woodencase |
|---|---|
| Delivery Detail: | if <200sets,delivery time <10days |
Controller:
1 With long serve life, controller Uses the advanced CPU chip processing control system. Operating parameter be demonstrated in digital.
2 Parameter is adjusted conveniently
3 Can link to entrance manage system
The hoisting mechanisms
1 Advanced structural design , hoop always move on orbital
2 Convenient altitude control
3 The guards equipment prevented the door from derailed
4 According to your need, we make hoop of different material
5 With high intensity, even load, steady move , the hoisting mechanisms can bear 150 kilogram .
Power girder uses aluminium alloy material, with reasonable and credible drive structure. Use life is over 1 million times of operation.
*Doors are designed from 12mm high-quality glass, with good transparency, simple structure and luxury style.
Optional Accessory
