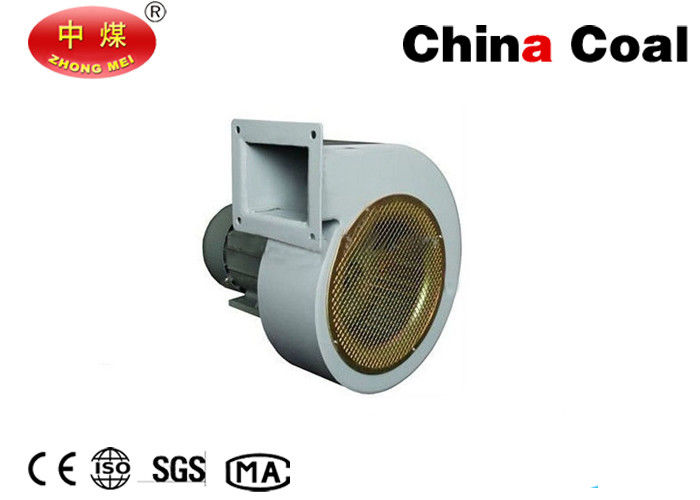

DF 11 Small Exhaust Fan Blower Low Noise Centrifugal Blower for Ventilation System

Product Details:

Place of Origin:	China Shandong
Brand Name:	China Coal
Certification:	CE, SGS, TUV, BV, ISO, MA
Model Number:	DF-1 Small Exhaust Fan Blower

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	Standard Export Packaging
Delivery Time:	Shipped in three days after payment
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	5000

Contact Now

Detailed Product Description

No.:	DF-1 Small Exhaust Fan Blower	Output (Kw):	0.04
Voltage(v):	1.5	Speed (r/min):	2900
Flow(cbm/h):	160	Pressure(Pa:	250
Noise DB(A):	<60	Weight(kg):	3.2
High Light:	industrial ventilation equipment , ventilating fan

DF 11 Small Exhaust Fan Blower Exhaust Blower Low Noise Centrifugal Blower
exhaust fan blower ; DF-11 exhaust fan blower; exhaust blower
Product Introduction
It is widely applicable for the industries and departments, especially fit for the cooling, temperature-control, ventilation functions in the plastic; printing machineries, drying machine, cable machinery,
DC motors, underground facilities, etc.
Model DF low noise centrifugal blower with forward-curved impeller blades demand maximum motor power at maximum air flow rate and zero static pressure.
It is of consummate craft and technological design, firm material, stable and reliable performance. It has
the features of high efficiency, low noise, small size, high pressure, easy installation etc.
We have years of experience in providing centrifugal blower solutions. Emails for enquiry are warmly
welcomed, we are always at your service. We will provide corresponding solutions according to the
requirements of all our customers.
Main Parameter

DF 11 Small Exhaust Fan Blower Exhaust Blower Low Noise Centrifugal Blower
No.	Output (Kw)	Voltage (v)	Speed (r/min)	Flow (cbm/h)	Pressure (Pa)	Noise dB (A)	weight(kg)
No.	Output (Kw)	Voltage (v)	Speed (r/min)	Flow (cbm/h)	Pressure (Pa)	Noise dB (A)	3-phase	1-phase
DF-1	0.04	220/380	2900	160	250	<60	3.2	3.7
DF-2	0.25	220/380	2900	504	869	<74	7.0	8.5
DF-3	0.18	220/380	2840	405	458	<72	5.3	6.4
DF-3B	0.12	220/380	2840	340	340	<72	4.7	5.1
DF-4	0.06	220/380	2900	246	412	<72	3.8	3.8
DF-5	0.55	220/380	2800	850	1020	<76	10.4	12
DF-5A	0.55	220/380	2800	850	853	<76	10.2	11.8
DF-6	0.37	220/380	2800	660	853	<76	7.6	9.6
DF-7	0.75	220/380	2800	1200	1250	<80	12	17.8
DF-8	1.1	220/380	2840	1600	1300	<82
DF-8A	1.1	220/380	2840	1080	1700	<82
DF-9	1.5	220/380	2840	2000	1400	<85
DF-10	2.2	220/380	2840	2300	1400	<85
DF-11	3	380	2900	3010	1710	<85
DF-12	4	380	2900	4000	1960	<88
DF-13	5.5	380	2920	5200	2150	<91
